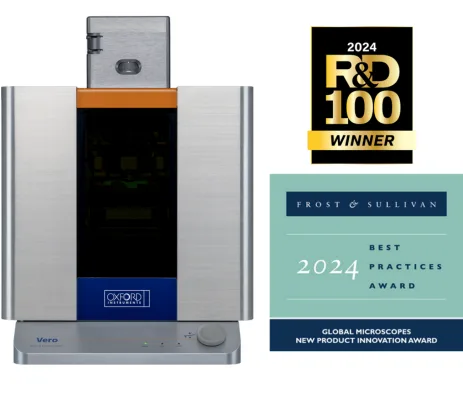

Vero VRS1250 Interferometric AFM
Brand: Oxford Instruments | Category: Nanotechnology
This model carries all three of Asylum Research's most advanced AFM technologies at once: Quadrature Phase Differential Interferometry (QPDI), video rate speed imaging and blueDrive photothermal excitation. Line rates reach 1250 lines per second and imaging reaches 45 frames per second. Detection noise is cut by up to ten times or more on many cantilevers.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Maximum line rate | Up to 1,250 lines/s |
| Maximum frame rate | Up to 45 frames/s; image resolution dependent |
| Detection | Quadrature Phase Differential Interferometry (QPDI) |
| Excitation | blueDrive photothermal excitation included |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Specimen or clinical application and required imaging/measurement outputs
- Optics/source, detectors, working distance, stage and documentation options
- Room conditions, utilities, preparation accessories and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
