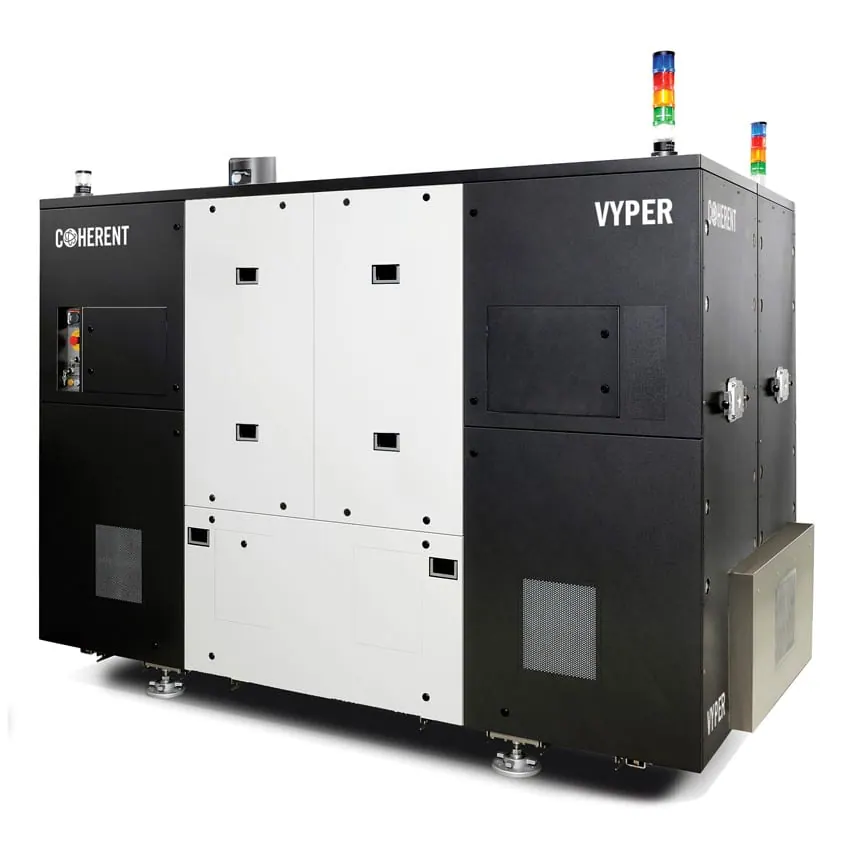

VYPER
Brand: Coherent | Category: Scientific & Laboratory Equipment
VYPER are kilowatt class excimer laser platforms at 308 nm for high volume display production. They internally combine the output of up to six laser beams and are designed to work with Coherent LineBeam optics for excimer laser annealing.
Technical Specifications
| Parameter | Value |
|---|---|
| VYPER | 308 nm, 600 Hz, 2000 mJ maximum pulse energy, 1200 W |
| TwinVYPER | 308 nm, 600 Hz, 4000 mJ maximum pulse energy, 2400 W |
| TriVYPER | 308 nm, 600 Hz, 6000 mJ maximum pulse energy, 3600 W |
| Specification | Internally combines the output power of up to six laser beams |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
