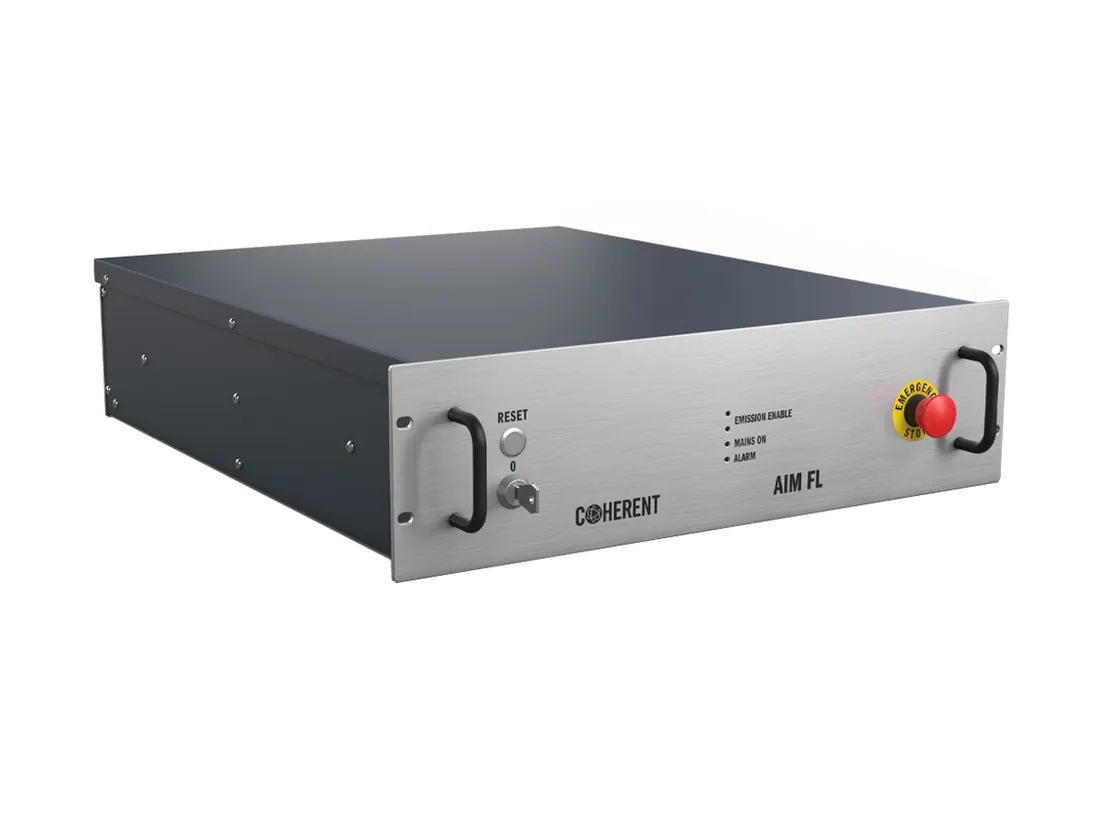

AIM Fiber Laser
Brand: Coherent | Category: Scientific & Laboratory Equipment
AIM FL are multi-kilowatt single mode fibre lasers for precision welding and handheld laser welding. Five models cover 0.5 kW to 3 kW, all with a beam parameter product below 0.4 mm x mrad at 20 um and a 10 m supplied process fibre.
Technical Specifications
| Parameter | Value |
|---|---|
| AIM FL500 | 0.5 kW output power |
| AIM FL1, FL1.5, FL2 and FL3 | 1, 1.5, 2 and 3 kW output power |
| Beam parameter product | <0.4 mm x mrad at 20 um |
| Standard supplied fiber | 10 m, 20 um core diameter |
| Dimensions | 482.6 x 547 x 130 mm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
