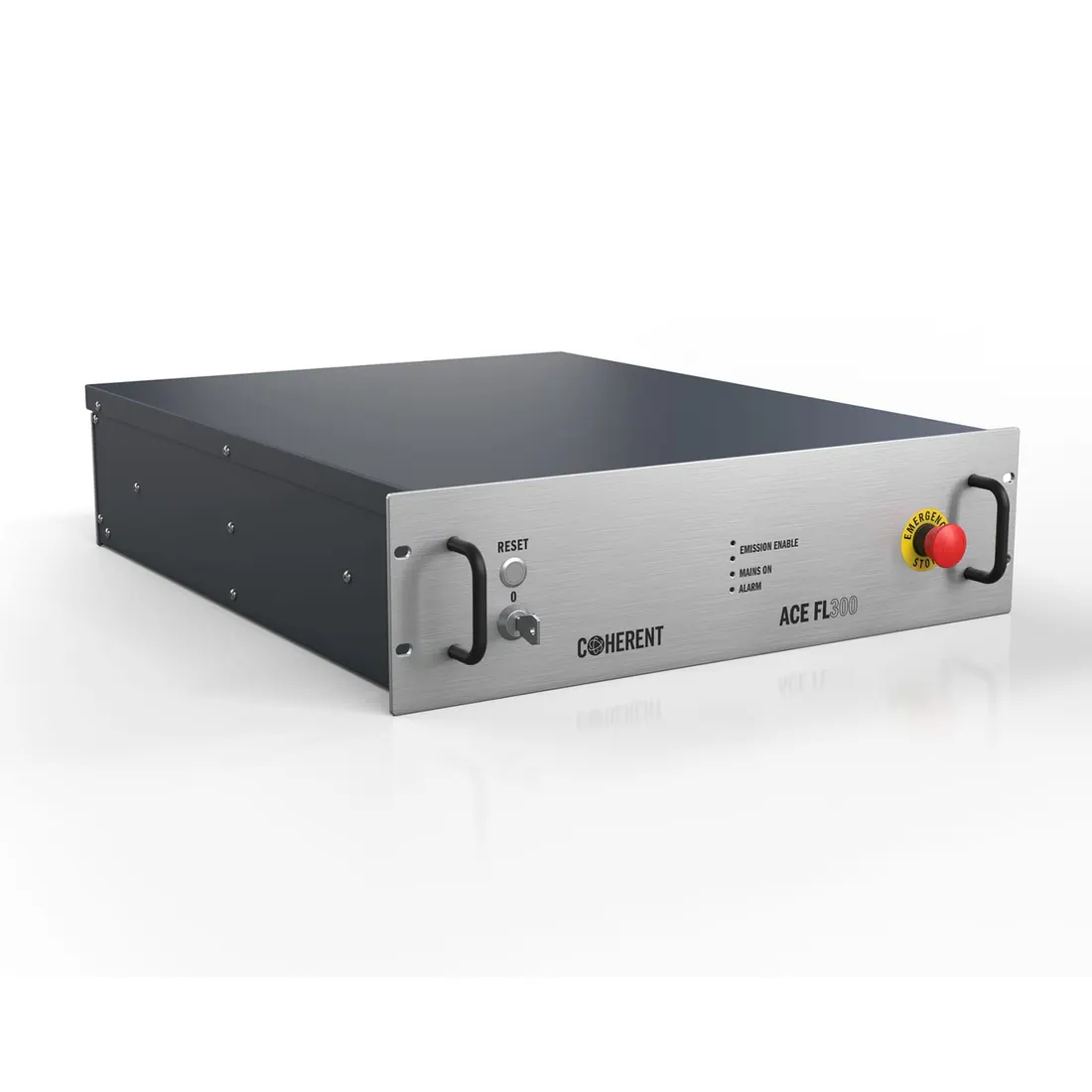

ACE Fiber Laser
Brand: Coherent | Category: Scientific & Laboratory Equipment
ACE FL is a 1940 nm fibre laser for urology procedures such as lithotripsy and for materials processing including clear polymer welding. Four models cover 75 W to 300 W nominal average power with air or water cooling and a flat top beam mode.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength | 1940 nm |
| ACE FL75 | 650: 75 W average, 650 W peak, air cooled, 390 x 365 x 215 mm |
| ACE FL120 | 1250: 120 W average, 1150 W peak, air cooled, 390 x 365 x 215 mm |
| ACE FL250 | 1250: 250 W average, 1250 W peak, water cooled, 640 x 400 x 110 mm |
| ACE FL300 | 300 W average, water cooled, 482.6 x 547 x 130 mm |
