Auto Capture for Array Tomography ACAT
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment

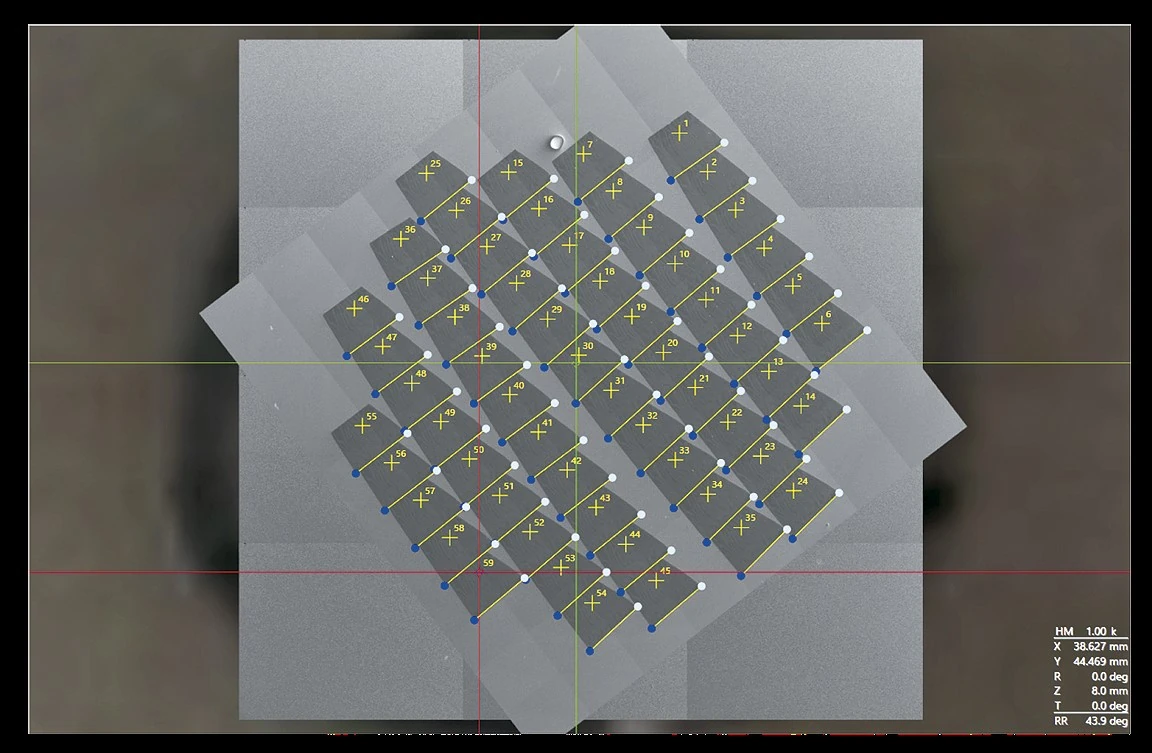

ACAT is an automated image acquisition option for serial section analysis on Hitachi field emission SEMs. It aligns and captures a chosen region of interest across many consecutive sections, correcting for rotation, compression and tears so array tomography runs without operator input.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of sections handled | up to 400 sheets |
| Number of shots in a single section | up to 400 |
| Captured image resolution | 640 x 480, 1,280 x 960, 2,560 x 1,920, 5,120 x 3,640 pixels |
| Photographed image format | BMP, TIFF, JPEG |
| Specification | An operating computer meeting the stated specification is required separately |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
