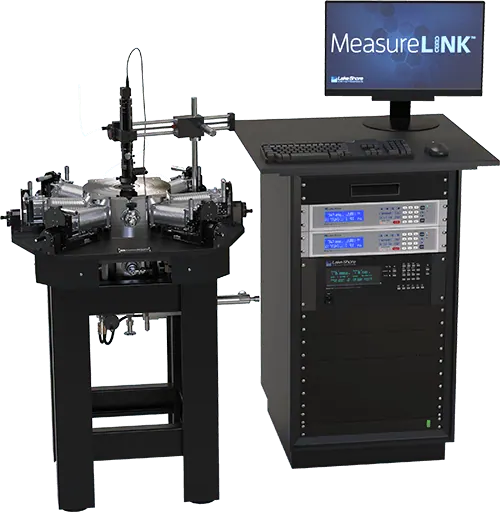

CPX-VF Cryogenic Probe Station
Brand: Lake Shore | Category: Nanotechnology
The CPX-VF is a cryogenic probe station with a vertical field superconducting magnet that applies up to +/-2.5 T perpendicular to the sample plane. The liquid helium cooled cryostat reaches a base temperature of 4.3 K, or 1.9 K with the PS-LT option. It is used for electrical measurements in an applied field.
Technical Specifications
| Parameter | Value |
|---|---|
| Field capability | +/-25 kOe (+/-2.5 T), vertical field superconducting solenoid |
| Field homogeneity | 0.5% over 10 mm diameter, 1.0% over 25 mm diameter |
| Base temperature | 4.3 K with up to 6 probe arms installed, control range 4.4 K to 420 K |
| Base temperature | 1.9 K with the PS-LT option, control range 2 K to 420 K |
| Cooling source | liquid helium (LHe) |
| Landed probe tip movement | <5 µm over a full field ramp |
