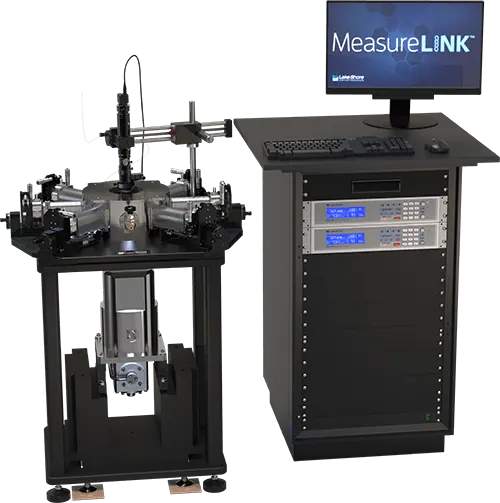

CRX-4K Cryogenic Probe Station
Brand: Lake Shore | Category: Nanotechnology
The CRX-4K is a cryogen-free cryogenic probe station cooled by a 2-stage closed cycle refrigerator, so no liquid cryogens are needed. Sample temperatures reach a base of 4.5 K with two probe arms installed, with control up to 350 K. It is used for electrical measurements on devices and materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Base temperature | 4.5 K with 2 probe arms installed, control range 5 K to 350 K |
| Base temperature | 6.0 K with 6 probe arms installed, control range 6.5 K to 350 K |
| High temperature range | 20 K to 675 K with the PS-HTSTAGE option |
| Cooling source | 2-stage closed cycle refrigerator (CCR) with 1 W cooling power at 4.2 K |
| Magnetic field | ring magnet kit |
| Cycle time | 4 h |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
