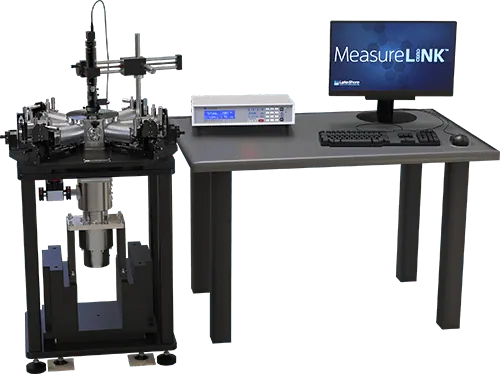

CRX-6.5K Cryogenic Probe Station
Brand: Lake Shore | Category: Nanotechnology
The CRX-6.5K is a general purpose cryogen-free probe station cooled by a 2-stage closed cycle refrigerator with 3 W of cooling power at 10 K. It removes the need for liquid cryogens and controls the sample stage from 8.5 K to 350 K. It is used for routine electrical characterisation of devices.
Technical Specifications
| Parameter | Value |
|---|---|
| Base temperature | 8 K with 2 probe arms installed, control range 8.5 K to 350 K |
| Base temperature | 10 K with 6 probe arms installed, control range 10.5 K to 350 K |
| High temperature range | 20 K to 675 K with the PS-HTSTAGE option |
| Cooling source | 2-stage closed cycle refrigerator (CCR) with 3 W cooling power at 10 K |
| Magnetic field | ring magnet kit |
| Cycle time | 6.25 h (0.5 h pump down, 3.5 h station cooldown, 2.25 h station warmup) |
