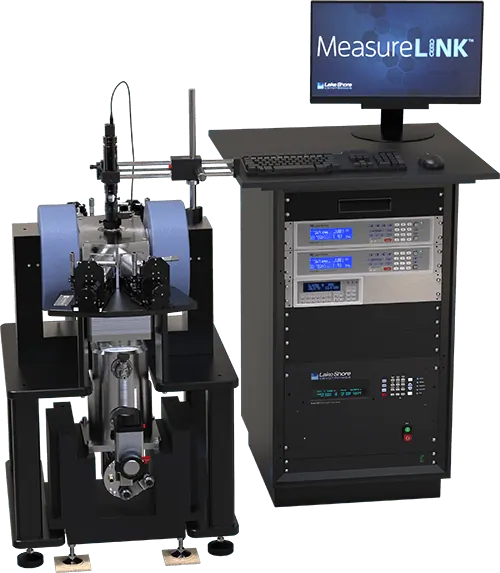

CRX-EM-HF Cryogenic Probe Station
Brand: Lake Shore | Category: Nanotechnology
The CRX-EM-HF is a cryogen-free probe station with a horizontal electromagnet that applies up to +/-0.6 T in the plane of the sample. A 2-stage closed cycle refrigerator cools the stage to a base temperature of 8 K, with control from 10 K to 420 K. It is used for in-plane field measurements on devices.
Technical Specifications
| Parameter | Value |
|---|---|
| Field capability | +/-6 kOe (+/-0.6 T), horizontal electromagnet parallel to the sample plane |
| Field homogeneity | 0.6% over 10 mm diameter, 2.6% over 25 mm diameter |
| Base temperature | 8 K, control range 10 K to 420 K |
| Probe arms | up to 4 installed |
| Cooling source | 2-stage closed cycle refrigerator (CCR) with 1 W cooling power at 4.2 K |
| Field control | Hall probe installed in the station for closed-loop control |
