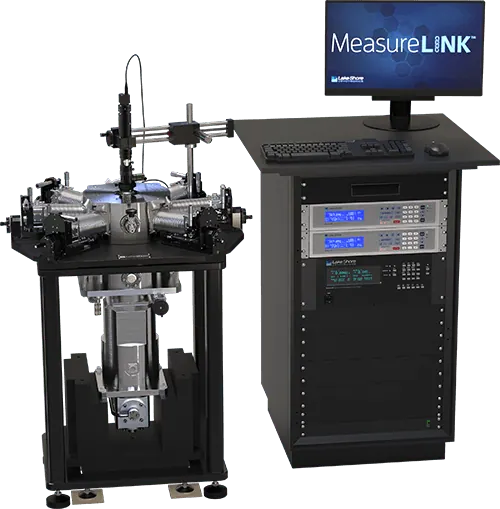

CRX-VF Cryogenic Probe Station
Brand: Lake Shore | Category: Nanotechnology
The CRX-VF is a cryogen-free probe station with a vertical field superconducting magnet that applies up to +/-2.5 T perpendicular to the sample plane. A 2-stage closed cycle refrigerator cools the sample without liquid cryogens, with temperature control up to 420 K. It is used for measurements in an applied field.
Technical Specifications
| Parameter | Value |
|---|---|
| Field capability | +/-25 kOe (+/-2.5 T) maximum, vertical field superconducting solenoid |
| Field against temperature | +/-2.5 T at 10 K, +/-2 T from 11 K to 400 K, +/-1 T from 401 K to 420 K |
| Field homogeneity | 0.5% over 10 mm diameter, 1.0% over 25 mm diameter |
| Cooling source | 2-stage closed cycle refrigerator (CCR) with 1 W cooling power at 4.2 K |
| Probe arms | up to 6 installed |
| Landed probe tip movement | <5 µm over a full field ramp |
