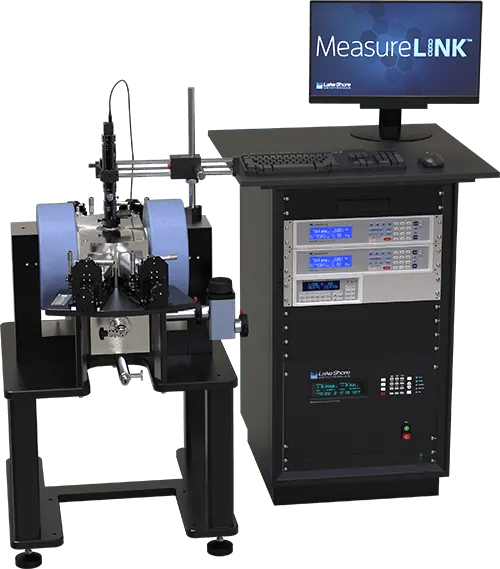

EMPX-H2 Cryogenic Probe Station
Brand: Lake Shore | Category: Nanotechnology
The EMPX-H2 is a cryogenic probe station with a horizontal field electromagnet that applies up to +/-0.6 T in the plane of the sample. A 3-stage flow cryostat cooled by liquid helium or liquid nitrogen reaches a base temperature of 4.5 K, or 3.2 K with the PS-LT option. It takes up to four probe arms.
Technical Specifications
| Parameter | Value |
|---|---|
| Field capability | +/-6.0 kOe (+/-0.6 T), horizontal electromagnet parallel to the sample plane |
| Field homogeneity | 0.6% over 10 mm diameter, 2.6% over 25 mm diameter |
| Base temperature | 4.5 K, control range 5 K to 420 K, up to 4 probe arms installed |
| Base temperature | 3.2 K with the PS-LT option, control range 3.3 K to 420 K |
| Cryostat | 3-stage flow cryostat cooled by liquid helium (LHe) or liquid nitrogen (LN2) |
| Field control | Hall probe installed in the station for closed-loop control |
