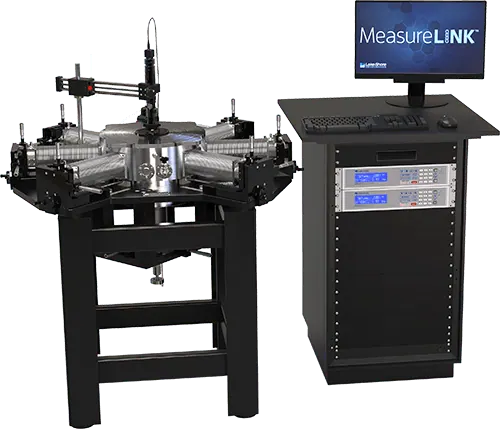

FWPX Cryogenic Probe Station
Brand: Lake Shore | Category: Nanotechnology
The FWPX is a cryogenic probe station for full wafer testing, taking wafers up to 102 mm (4 in) in diameter and able to be modified for 152 mm (6 in) wafers. A 2-stage flow cryostat cooled by liquid helium or liquid nitrogen gives a base temperature of 4.5 K with control up to 475 K.
Technical Specifications
| Parameter | Value |
|---|---|
| Base temperature | 4.5 K, control range 5 K to 475 K, up to 6 probe arms installed |
| Base temperature | 3.5 K with the PS-LT option, control range 4 K to 475 K |
| Cryostat | 2-stage flow cryostat cooled by liquid helium (LHe) or liquid nitrogen (LN2) |
| Magnetic field | not an option |
| Cycle time (LHe) | 3.5 h, including 0.5 h vacuum pump down and 1.5 h station cooldown |
| Vacuum | <5 x 10^-4 Torr at room temperature, <1 x 10^-5 Torr at helium base temperature |
