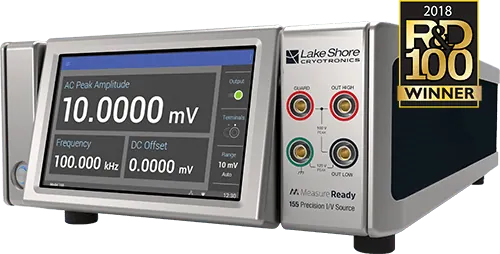

MeasureReady 155 AC/DC Current and Voltage Source
Brand: Lake Shore | Category: Nanotechnology
The MeasureReady 155 is a precision low noise AC and DC current and voltage source. It sources voltage from 10 mV to 100 V and current from 1 µA to 100 mA, with manual or automatic range selection. It is used to drive samples and devices in low level electrical measurements.
Technical Specifications
| Parameter | Value |
|---|---|
| Voltage source ranges | 10 mV, 100 mV, 1 V, 10 V and 100 V |
| Current source ranges | 1 µA to 100 mA with 10 V compliance, 1 µA to 10 mA with 100 V compliance |
| Voltage source resolution | 100 nV on the 10 mV range |
| Current source resolution | 10 pA on the 1 µA range |
| Output selection modes | voltage or current, with manual or autorange range selection |
| Current source compliance selection | 10 V or 100 V |
