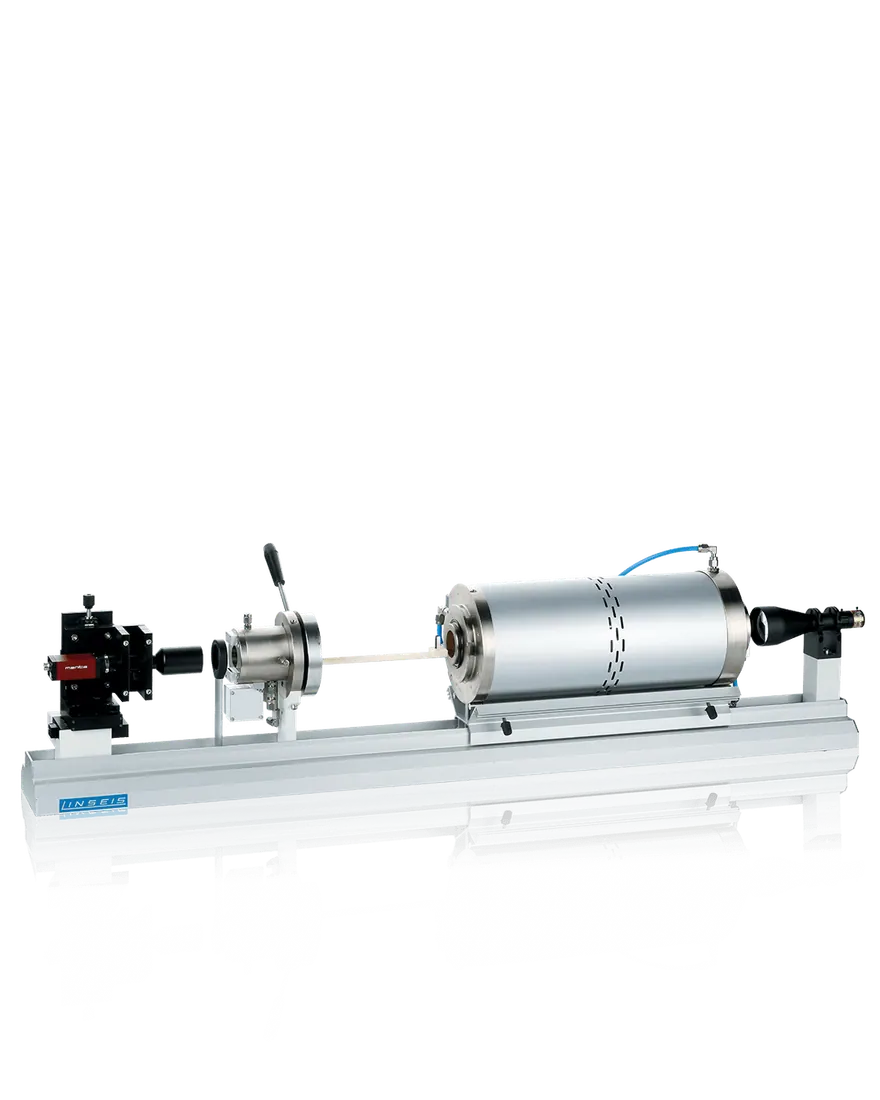

DIL L74 OD
Brand: Linseis | Category: Nanotechnology
The DIL L74 OD is an optical dilatometer that measures thermal expansion without touching the sample. A high-resolution camera tracks the change in length so the coefficient of thermal expansion can be determined on soft or fragile materials. Stated accuracy is up to 1 um.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -100 C up to 500 C; RT up to 500/1000/1500/2000 C |
| Measuring system | optical non contact |
| Accuracy | up to 1 um |
| Field of view | 3.3 x 2.8 mm |
| Heating rate | 0.01 to 100 C/min (depends on furnace) |
| Atmosphere | oxidising (optional: reducing, inert and vacuum), vacuum up to 10E-5 mbar |
