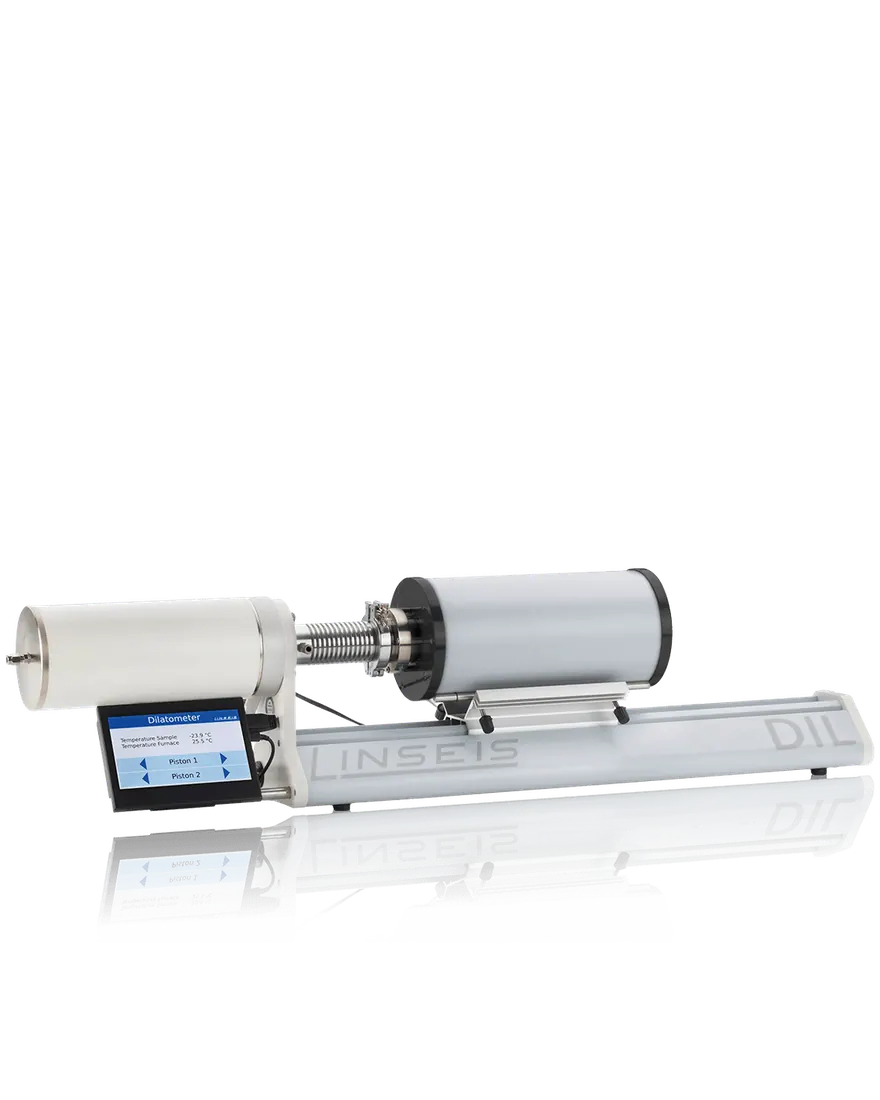

DIL L75 Horizontal
Brand: Linseis | Category: Nanotechnology
The DIL L75 Horizontal is a horizontal pushrod dilatometer that measures length change against temperature. It is offered as a single, differential or double sample system with LVDT or optical encoder detection. It is used for expansion and sintering studies, including work under 100 % hydrogen.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -180 up to 2800 C |
| LVDT measuring range | +/- 2500 um |
| Contact force | 10 mN up to 1 N |
| Optical encoder delta L resolution | 0.01 um |
| Optical encoder measuring range | +/- 25000 um |
| Specification | Turntable for up to 3 furnaces |
