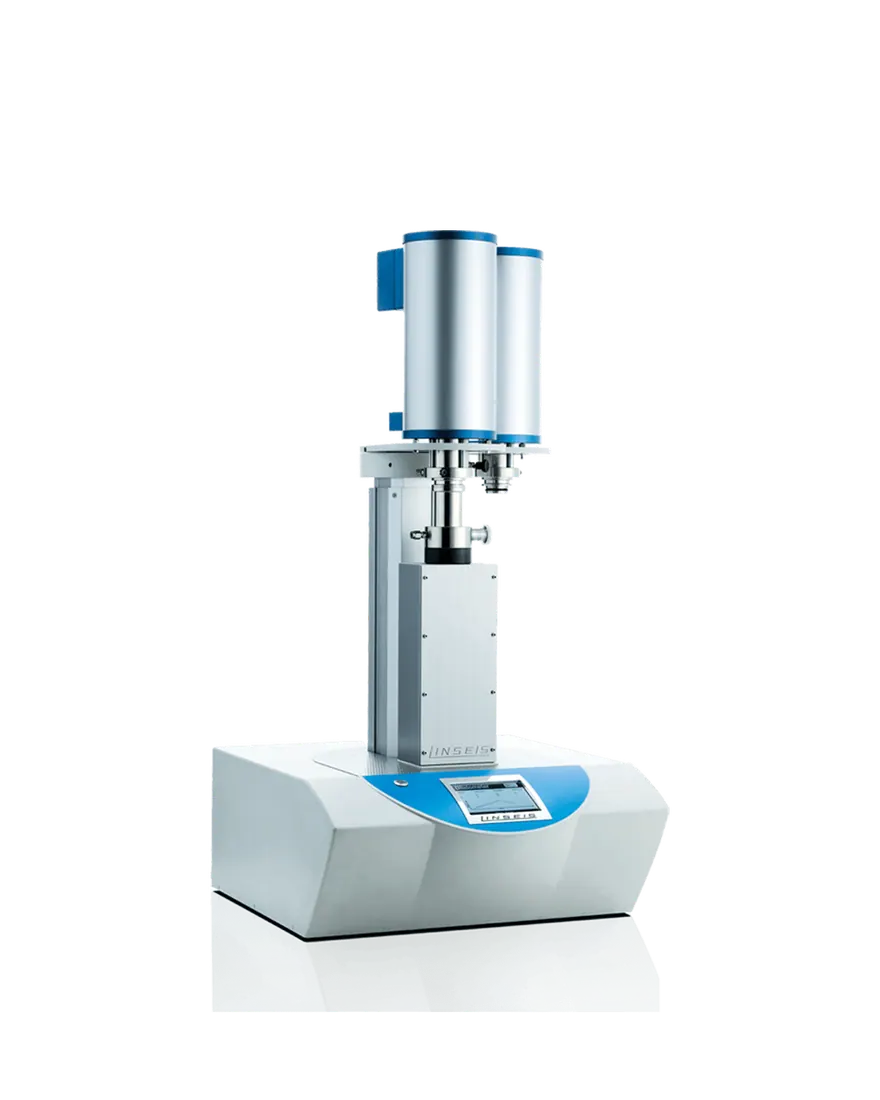

DIL L75 Vertical
Brand: Linseis | Category: Nanotechnology
The DIL L75 Vertical is a vertical pushrod dilatometer for sintering studies and expansion work. A zero-friction design and a cryogenic option down to -263 C allow length change to be followed over a very wide temperature range. It can also be operated under 100 % hydrogen.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -263 up to 2800 C |
| LVDT measuring range | +/- 2500 um |
| Contact force | 10 mN up to 1 N |
| Sample dimension | diameter up to 20 mm, up to 50 mm long and 20 mm wide |
| Optical encoder delta L resolution | 0.01 um |
| Optical encoder measuring range | +/- 25000 um |
