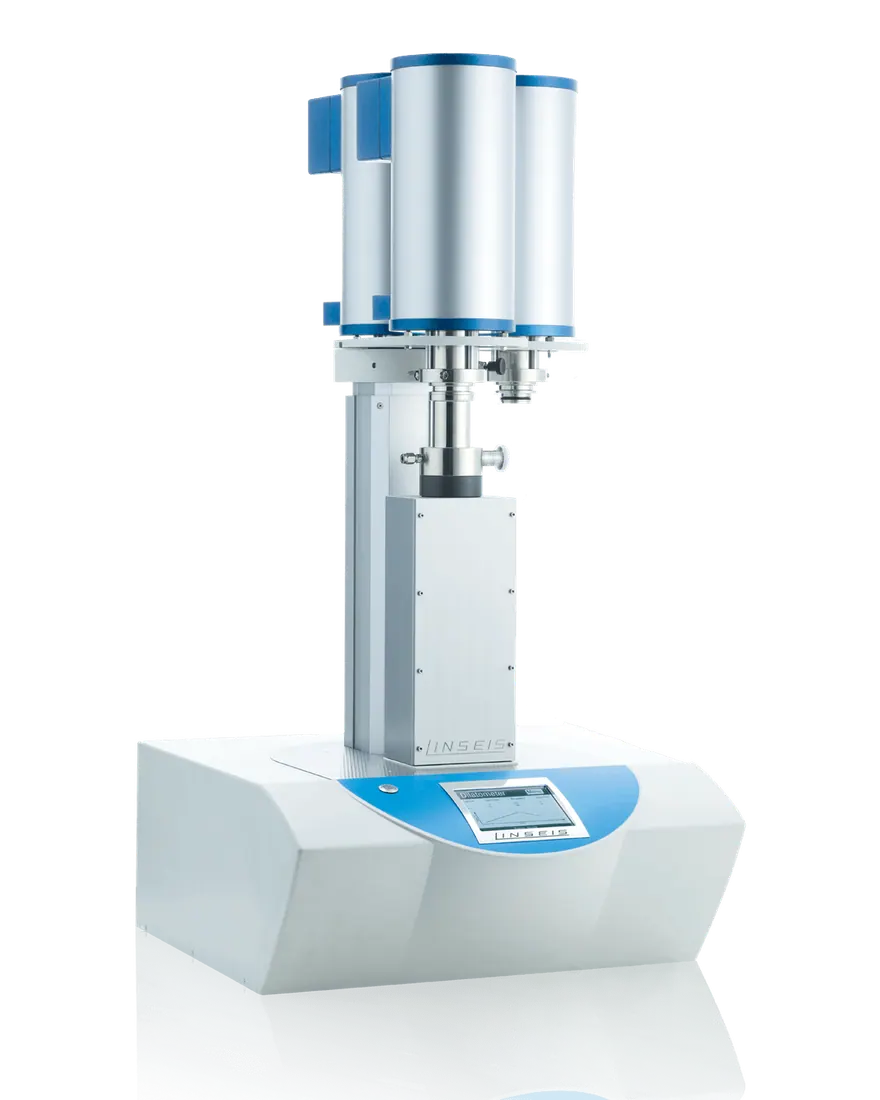

DIL L75 Quattro
Brand: Linseis | Category: Nanotechnology
The DIL L75 Quattro is a dilatometer that measures up to four samples in one run. It records length change against temperature for expansion, shrinkage and sintering work at a resolution of 0.125 nm. The four-sample layout raises throughput for laboratories with high sample numbers.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -180 C up to 500 C/700 C/1000 C, RT up to 1000 C/1400 C/1600 C/1750 C/2000 C/2400 C/2800 C |
| Heating/cooling rates | 0.01 K/min to 50 K/min (dependent on furnace) |
| Sample length | max. 50 mm, sample diameter: max. 7 mm |
| Measuring range | 500/5000 um |
| Resolution | 0.125 nm |
| Atmospheres | inert, oxidising, reducing, vacuum, static/dynamic |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
