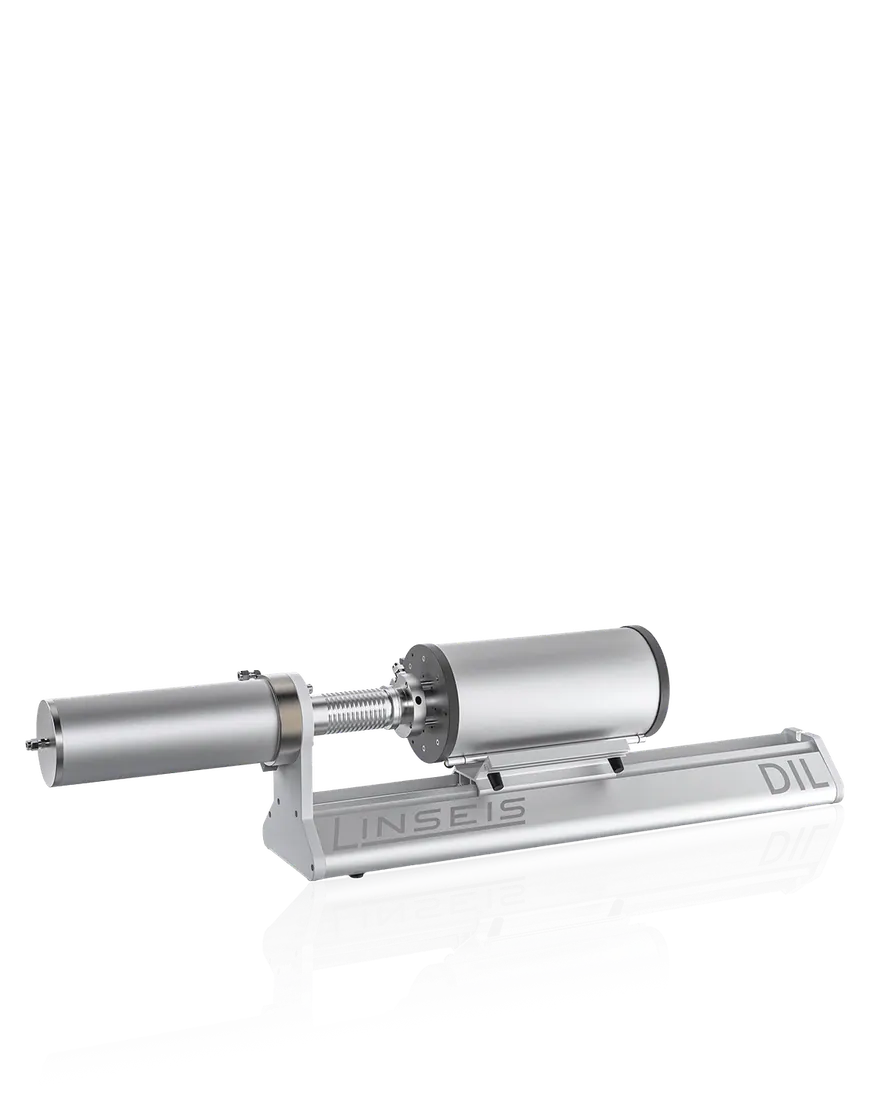

DIL L76 Horizontal
Brand: Linseis | Category: Nanotechnology
The DIL L76 Horizontal is an entry level horizontal dilatometer for thermal expansion measurements. It records the change in length of a sample from room temperature to 1600 C using LVDT or optical encoder detection. It suits CTE testing of ceramics, bricks, tiles, porcelain and building materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | RT to 1600 C |
| LVDT delta L resolution | 0.05 nm (digital) |
| LVDT measuring range | +/- 2500 um |
| Contact force | manual adjustment up to 1 N |
| Optical encoder delta L resolution | 1 nm |
| Optical encoder measuring range | +/- 25000 um |
