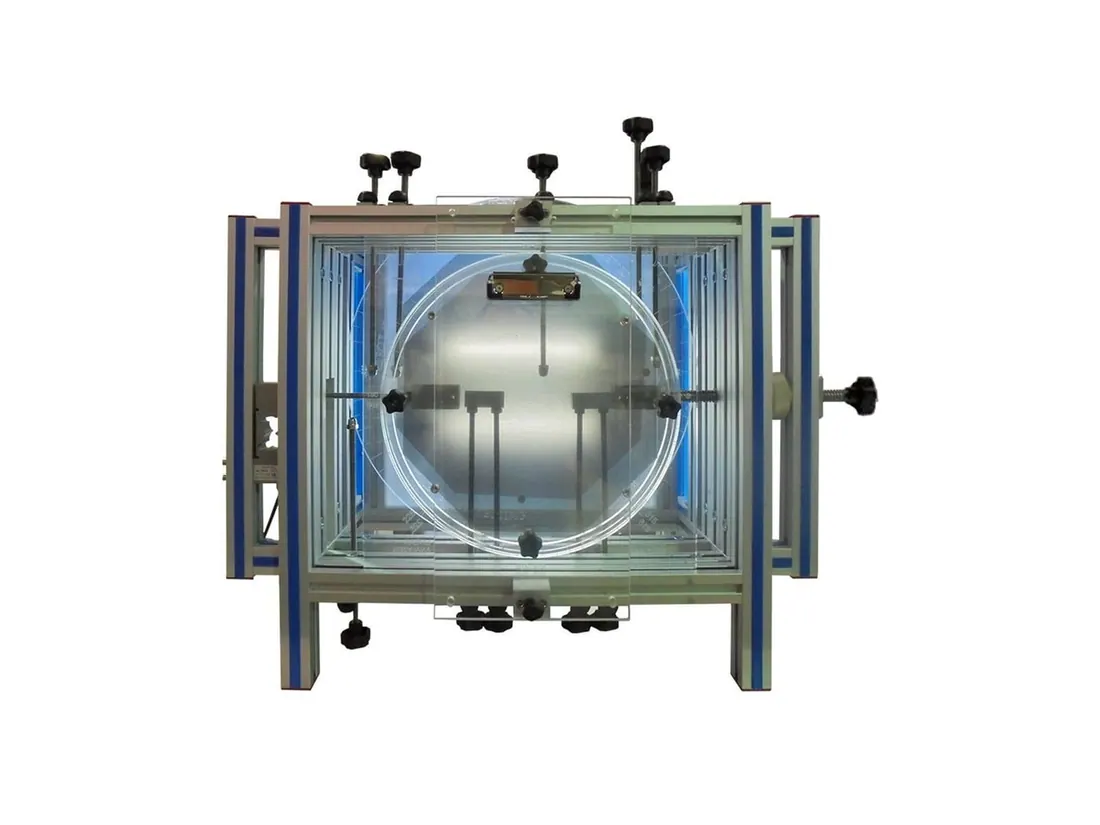

EFO: Photoelasticity Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
EFO is a transmission polariscope for photoelastic stress analysis. Loaded transparent models are viewed under polarised light so the fringe pattern shows the stress distribution and any stress concentrations. Computer controlled versions, EFOC and EFOV, are also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 750 x 400 x 550 mm approx |
| Weight | 20 Kg approx |
| Specification | Light source, two fluorescent tubes of 30 cm and 8 W |
| Specification | Monochromatic light 35 W |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
