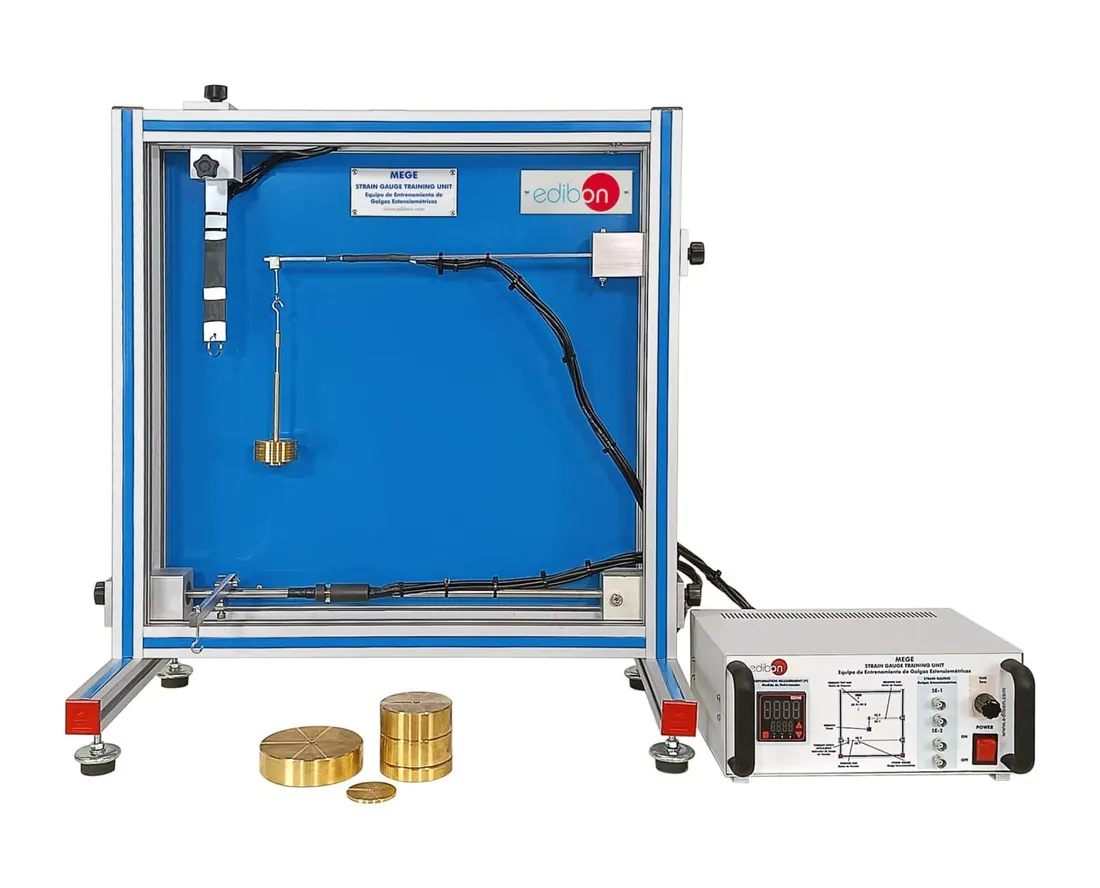

MEGE: Strain Gauge Training Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MEGE teaches the use of bonded resistance strain gauges. Students connect gauges in quarter, half and full bridge arrangements on loaded specimens and read the output, learning about bridge balancing and temperature compensation.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 600 x 400 x 650 mm approx |
| Weight | 20 Kg approx |
| Length | 500 mm |
| Diameter | 10 mm |
| Length | 200 mm |
| Cross-section | 0.5 x 25 mm |
