PSD: Photoelastic Stress Demonstration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

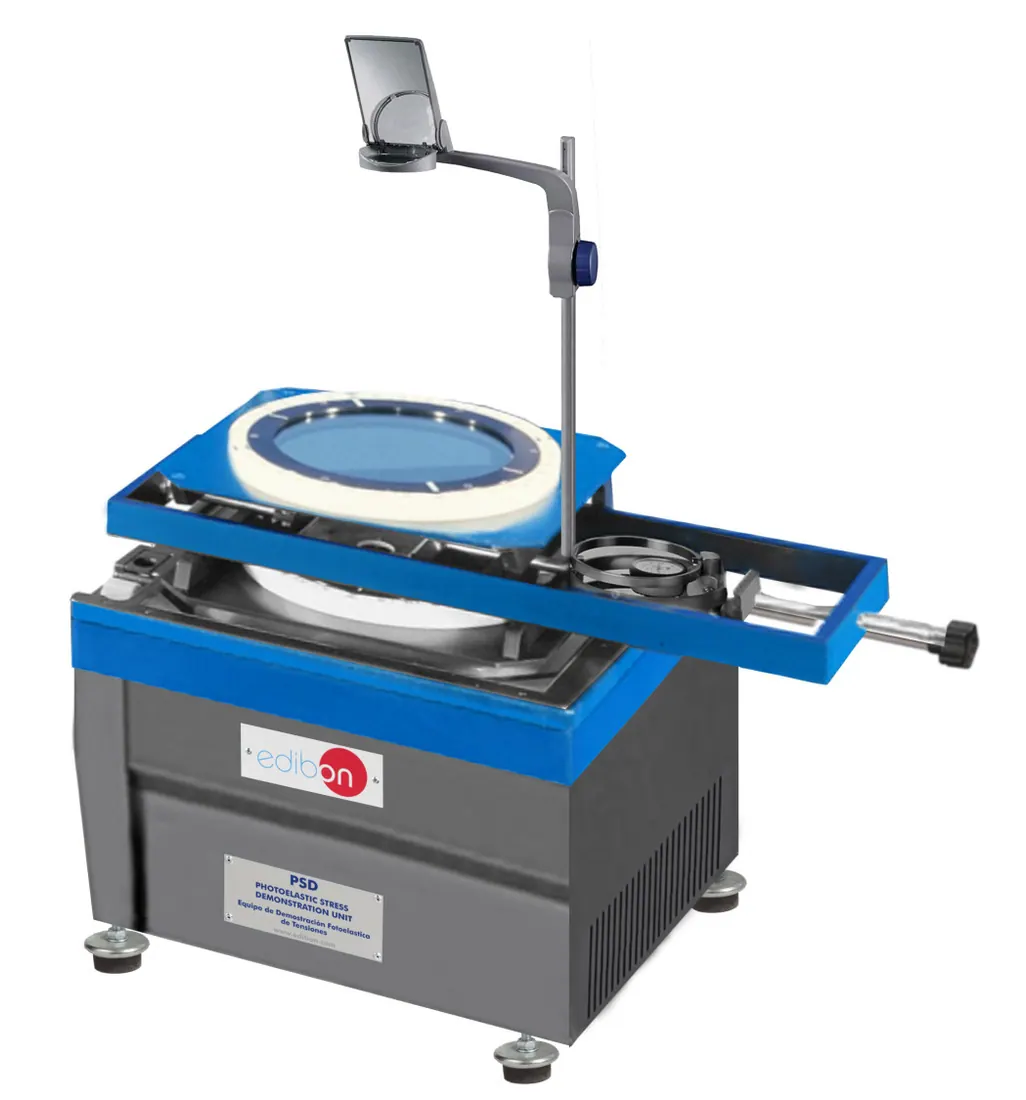

PSD is a compact polariscope for demonstrating photoelastic stress patterns. Transparent models are loaded in a small frame and viewed under polarised light so fringe patterns and stress concentrations can be shown to a class.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 500 x 200 x 150 mm approx |
| Weight | 10 Kg approx |
| Loading device with spindle and dynamometer for compressive and tensile load. Max load force | 250 N |
