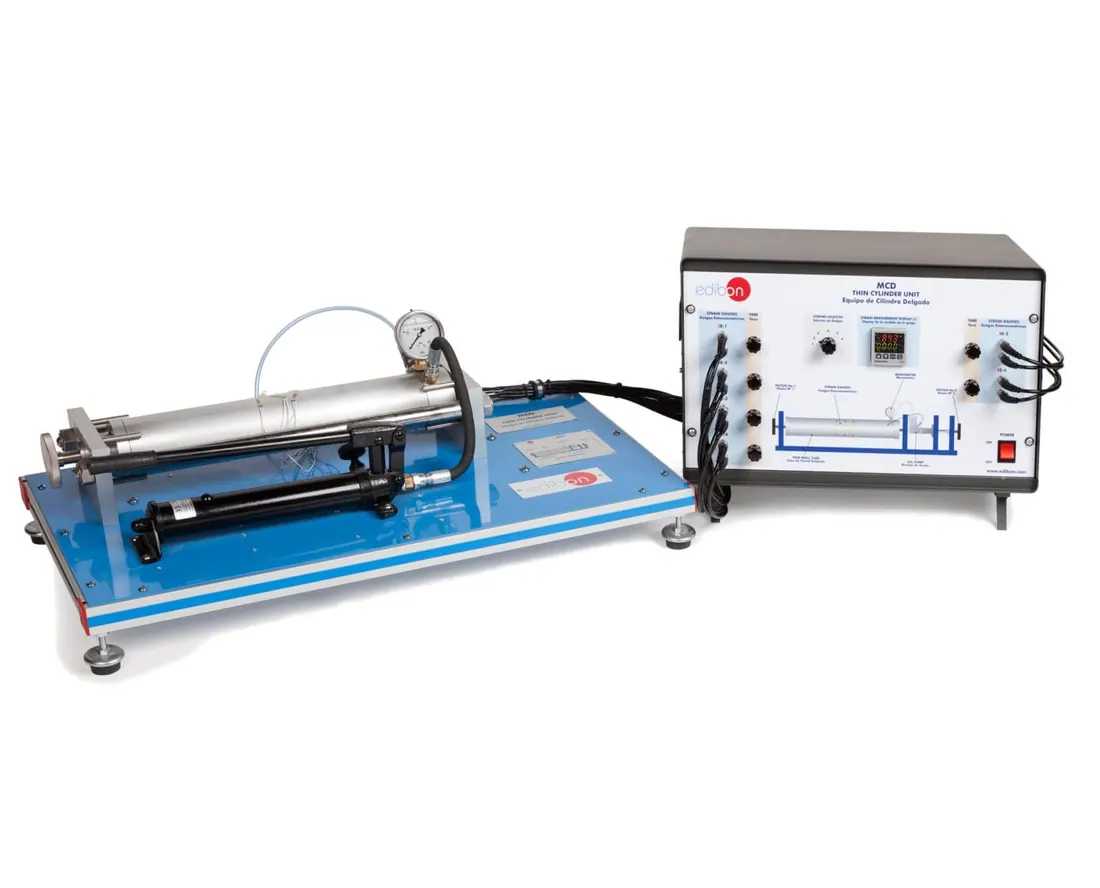

MCD: Thin Cylinder Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MCD is used to study the stresses in a thin walled cylinder under internal pressure. Strain gauges bonded to the cylinder are read as pressure is raised, allowing hoop and longitudinal stresses to be found for open and closed end conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 660 x 400 x 300 mm aprox |
| Weight | 20 Kg aprox |
| Specification | Modulus of elasticity = (65±5) · 10^6 [N/m²] |
| Specification | Inside diameter = 70 mm |
| Specification | Length = 400 mm |
| Specification | Wall thickness = 3 mm |
