MCPG: Thick Walled Cylinder Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

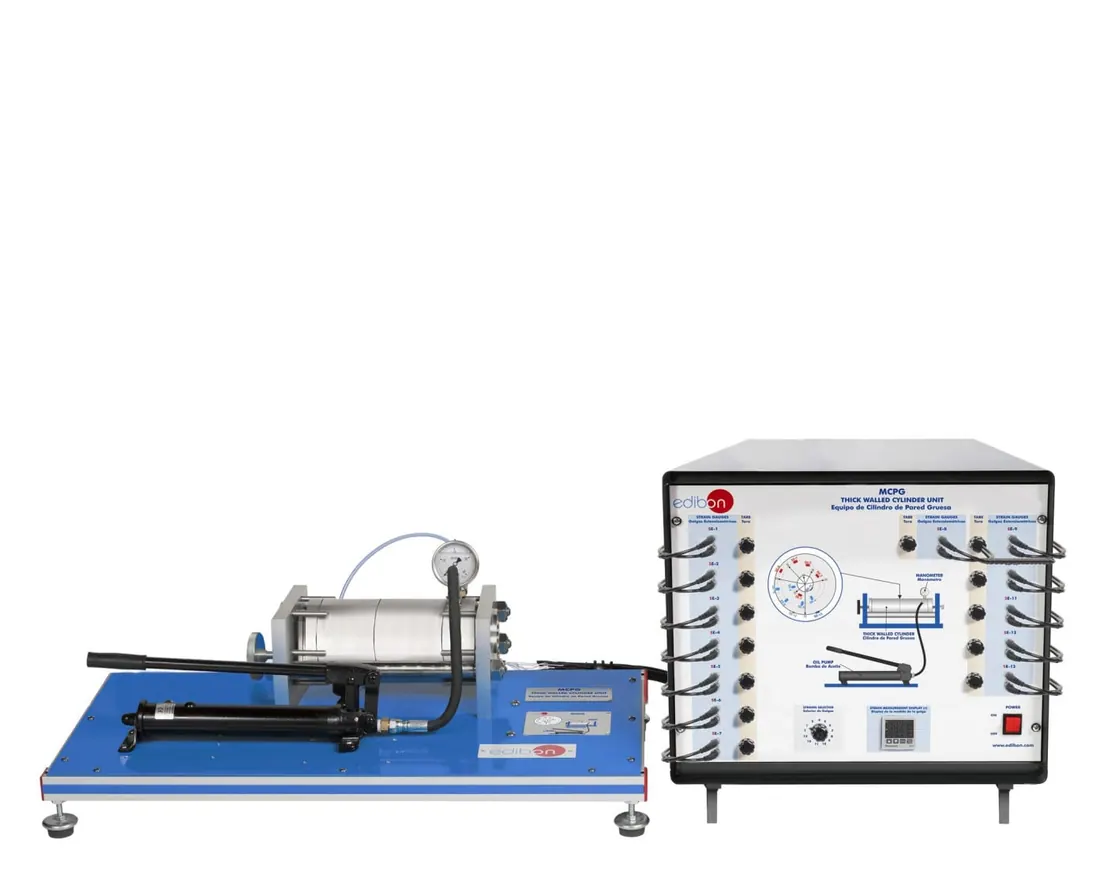

MCPG is used to measure the stress distribution through the wall of a thick cylinder under internal pressure. Strain gauges at different radii are read as pressure is applied, and the results are compared with the Lame equations.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 660 x 400 x 300 mm approx |
| Weight | 20 Kg approx |
| Specification | Length = 300 mm |
| Specification | Diameter = 140 mm |
| Specification | Wall thickness = 50 mm |
| Internal pressure | max. 7 N/mm² (70 bar) |
