MFGE: Unit for Determining the Gauge Factor of Strain Gauges
Brand: EDIBON | Category: Scientific & Laboratory Equipment

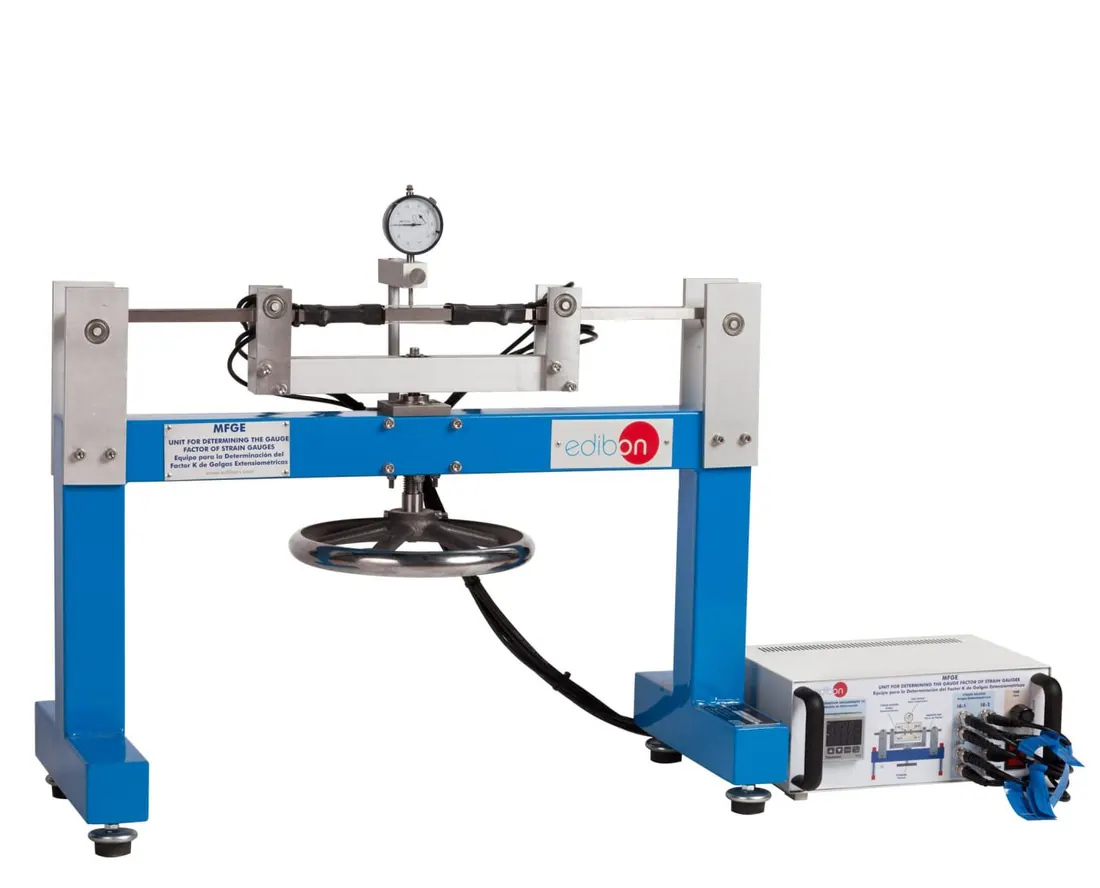

MFGE is used to determine the gauge factor of bonded strain gauges. A cantilever carrying the gauge is deflected by a known amount and the bridge output is measured, so the relationship between strain and resistance change can be found.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 720 x 350 x 400 mm approx |
| Weight | 25 Kg approx |
| Bending bar material | stainless steel. Dimensions: 680 x 25 x 12 mm |
| Dial gauge with adjustable dial for direct deflection measurement, range | 0 to 20 mm, graduations: 0.01 mm |
