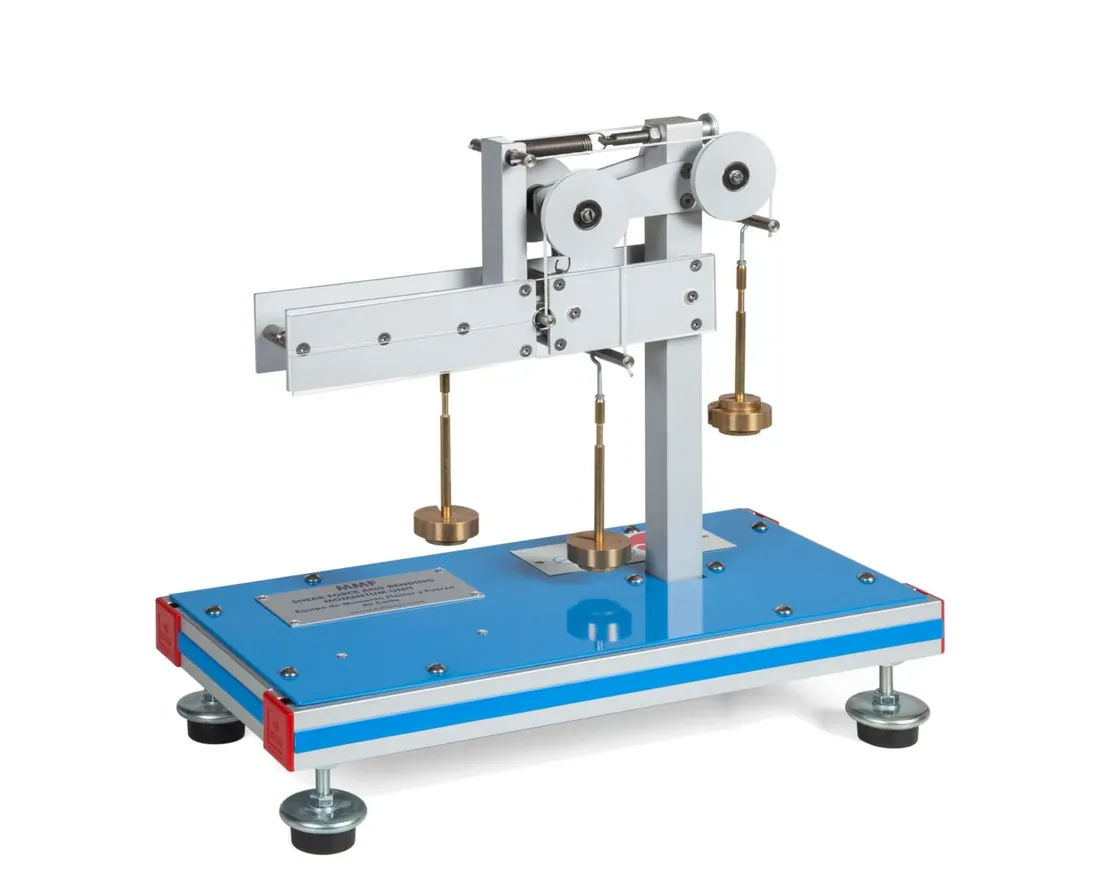

MMF: Shear Force and Bending Momentum Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MMF is used to measure shear force and bending moment in a simply supported beam. The beam is cut at a chosen section and the internal force is balanced by a load cell, so measured values can be compared with the calculated diagrams.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 216 x 350 mm approx |
| Weight | 8 Kg approx |
| Specification | Double-pulley system which allows us to achieve equilibrium of the bending moment |
| Specification | Different application points for the loads |
