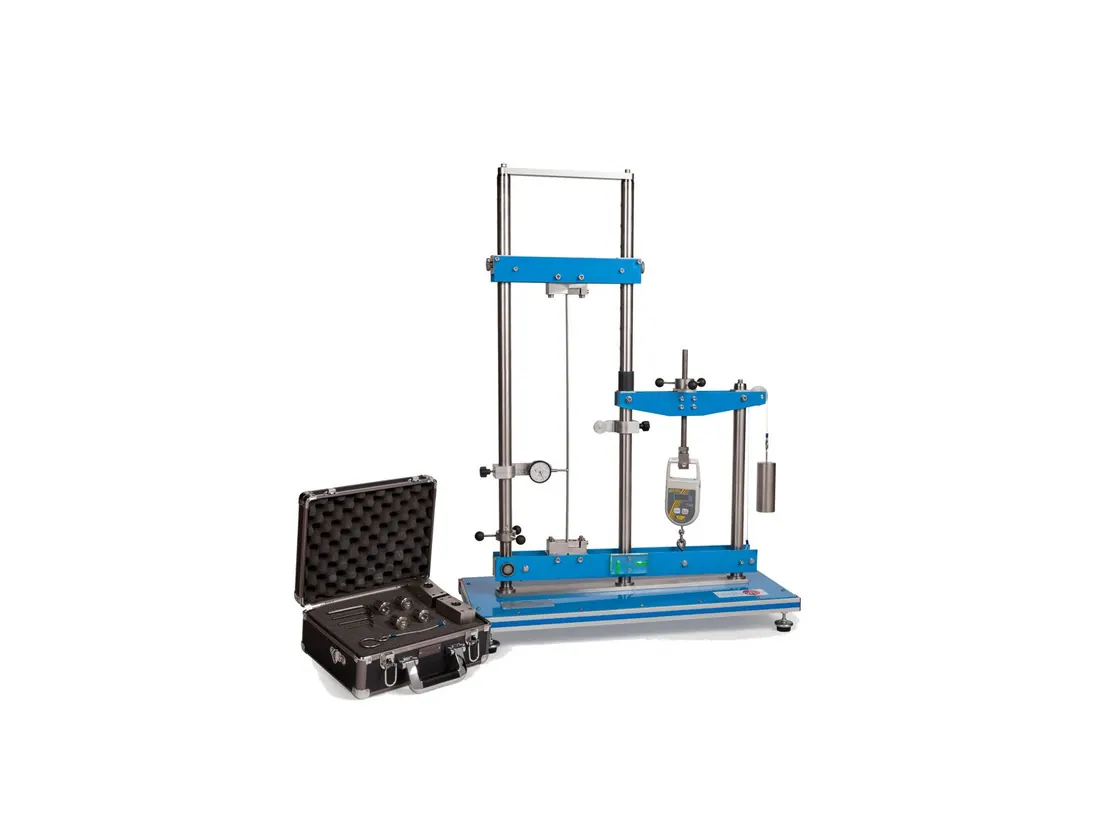

MUP: Universal Buckling Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MUP is a test frame for buckling experiments on struts, frames and beams. It accepts specimens of different length and end condition and applies axial load through a screw mechanism, with load and deflection measured during the test.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 800 x 500 x 1200 mm approx |
| Weight | 65 Kg approx |
| Specification | A 1 m height portico, where the test bars are placed |
| Two porticoes range | 0 to 50 kg |
| Two porticoes weight | 2 kg |
| Two porticoes range | 0 to 20 mm |
