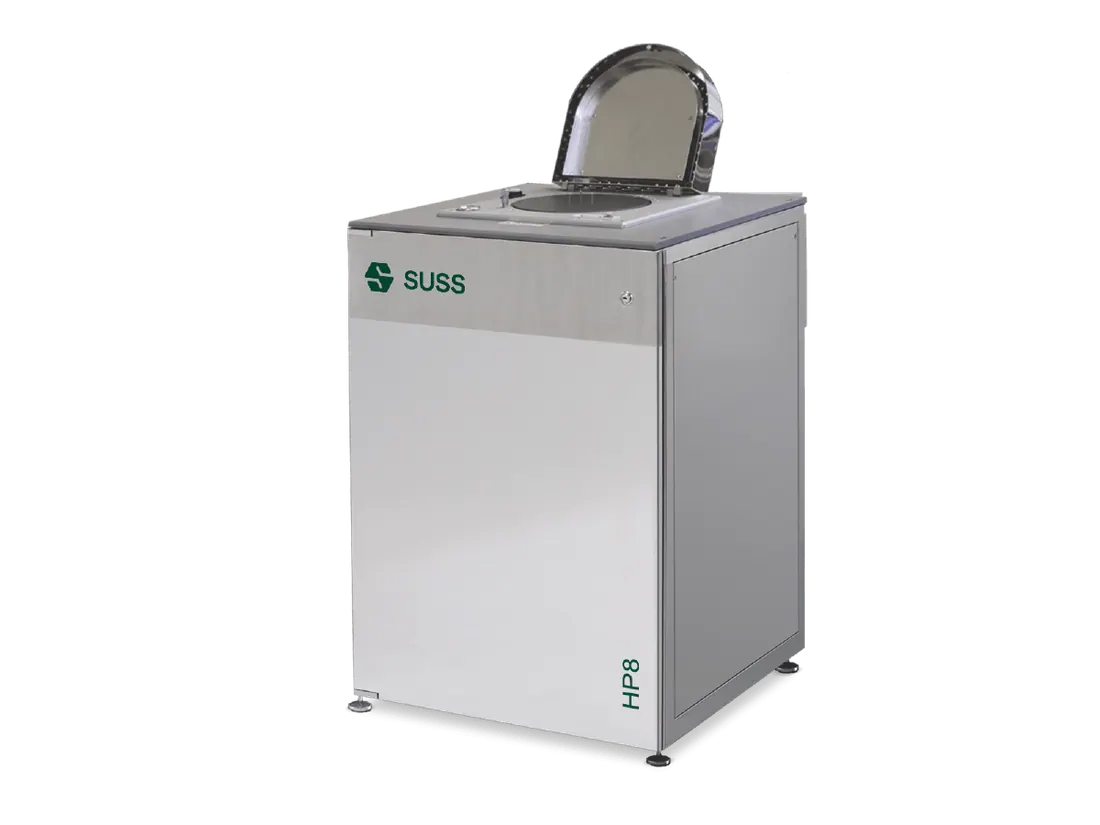

HP8 Hot Plate for Manual Coating
Brand: SUSS MicroTec | Category: Nanotechnology
A compact manual hot plate for the soft bake, post exposure bake and hard bake steps of a research coating line. It takes round substrates up to 200 mm or 6 inch squares and uses coil heating with three lifting pins for handling.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate size | up to 200 mm round or 6 inch square |
| Temperature range | up to 250 °C |
| Temperature precision | ±0.5 °C up to 120 °C |
| Temperature precision | ±1% up to 250 °C |
| Recipes | up to 200 multi-step recipes |
| Interface | touchscreen |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about SUSS MicroTec equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
