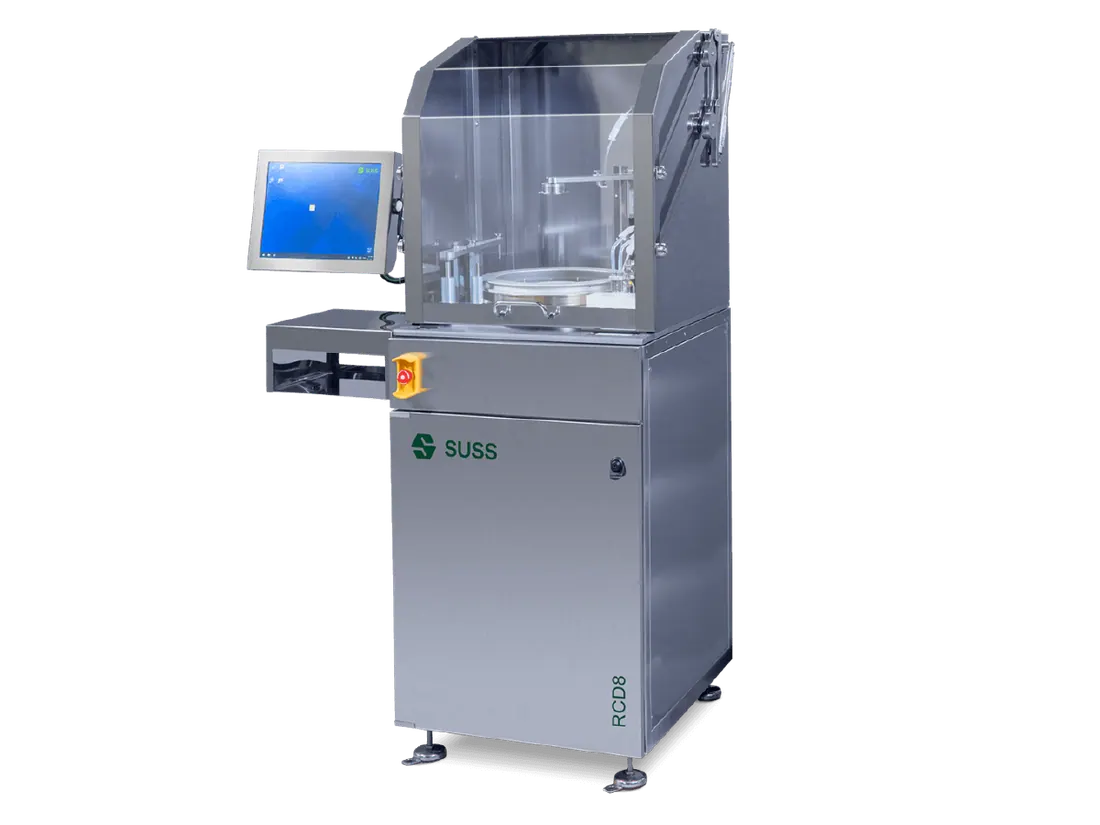

RCD8 Semi-Automated Coater and Developer
Brand: SUSS MicroTec | Category: Nanotechnology
A semi-automated resist coating and developing module for wafers up to 200 mm. It suits research and small scale production, handling everything from very thin films to highly viscous thick resists, and runs alone or inside a SUSS LabCluster.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate size | wafers up to 200 mm |
| Spin speed | up to 10,000 rpm, upgradeable to 12,000 rpm |
| Acceleration | 7,000 rpm/s |
| Viscosity range | less than 1 cps up to 55,000 cps |
| Modules | coater, developer, hotplate and vapour primer |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about SUSS MicroTec equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
