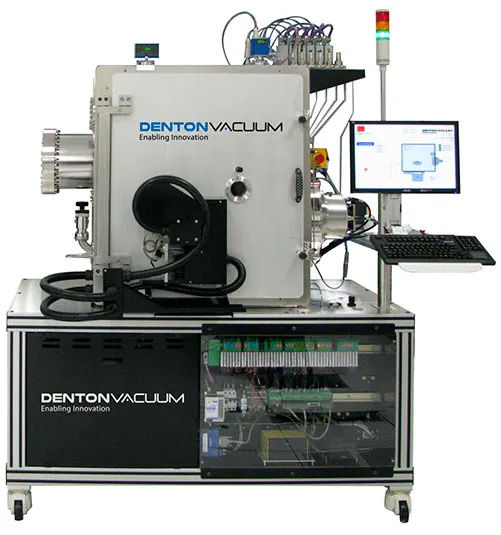

Infinity RM
Brand: Denton Vacuum | Category: Nanotechnology
A pre-configured ion beam deposition system for research on demanding films such as optical interference coatings and x-ray mirror optics. Independent control of ion beam energy and flux sets film microstructure, stoichiometry and stress.
Technical Specifications
| Parameter | Value |
|---|---|
| Technology | end-to-end ion beam deposition, pre-configured |
| Specification | Second ion source included for pre-clean and ion assisted deposition |
| Specification | Independent control of ion beam energy and flux |
| Specification | Options for hardware and monitors |
| Applications | optical interference coatings, encapsulation films, interconnects, under-bump metallisation, thin film heads, x-ray mirror optics |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Denton Vacuum equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Thin Film Deposition
- Phoenix LC
An in-line magnetron sputtering system for large area production, built around rectangular or round linear cathodes. An automated palletised conveyor carries substrates through the linear chambers, and both planar and three dimensional components can be processed.
- Infinity Ion Beam Deposition
An ion beam sputtering system that deposits dense films with tight thickness control, using a monoenergetic ion beam directed at a target. The Biased Target Sputter module keeps high energy ions near the target, which removes beam overspill and allows stress to be controlled.
- Versa Cluster Platform
An automated cluster front end for high volume manufacturing that can carry up to two cassette load locks and six coating chambers. A semiconductor grade robotic handler moves substrates between load lock and modules, so multiple layers can be deposited without breaking vacuum.
