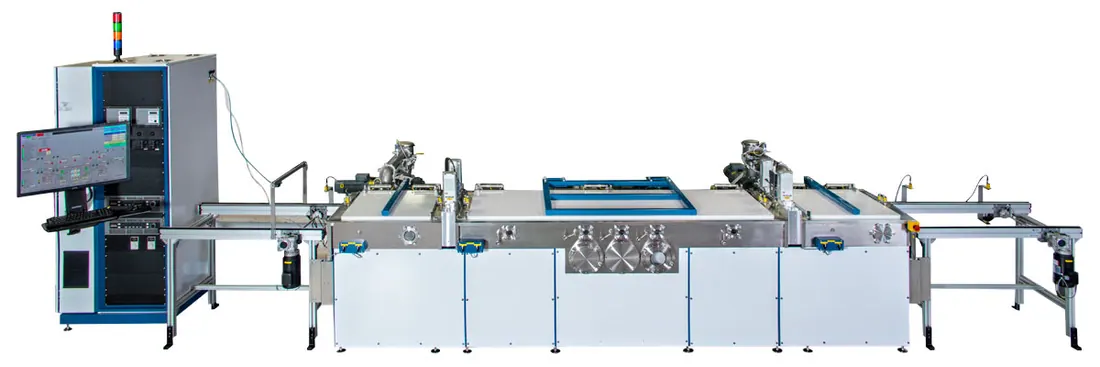

Phoenix LC
Brand: Denton Vacuum | Category: Nanotechnology
An in-line magnetron sputtering system for large area production, built around rectangular or round linear cathodes. An automated palletised conveyor carries substrates through the linear chambers, and both planar and three dimensional components can be processed.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate or pallet size | up to GEN 3.5 glass, 600 mm x 720 mm |
| Power delivery | RF, AC, DC and pulsed DC magnetron sputtering |
| Cathodes | planar or cylindrical, width and length matched to the process |
| Automation | in-line palletised conveyance system |
| Options | Denton optical process control system or colour control system |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Denton Vacuum equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
