Brand: SUSS MicroTec | Category: Nanotechnology

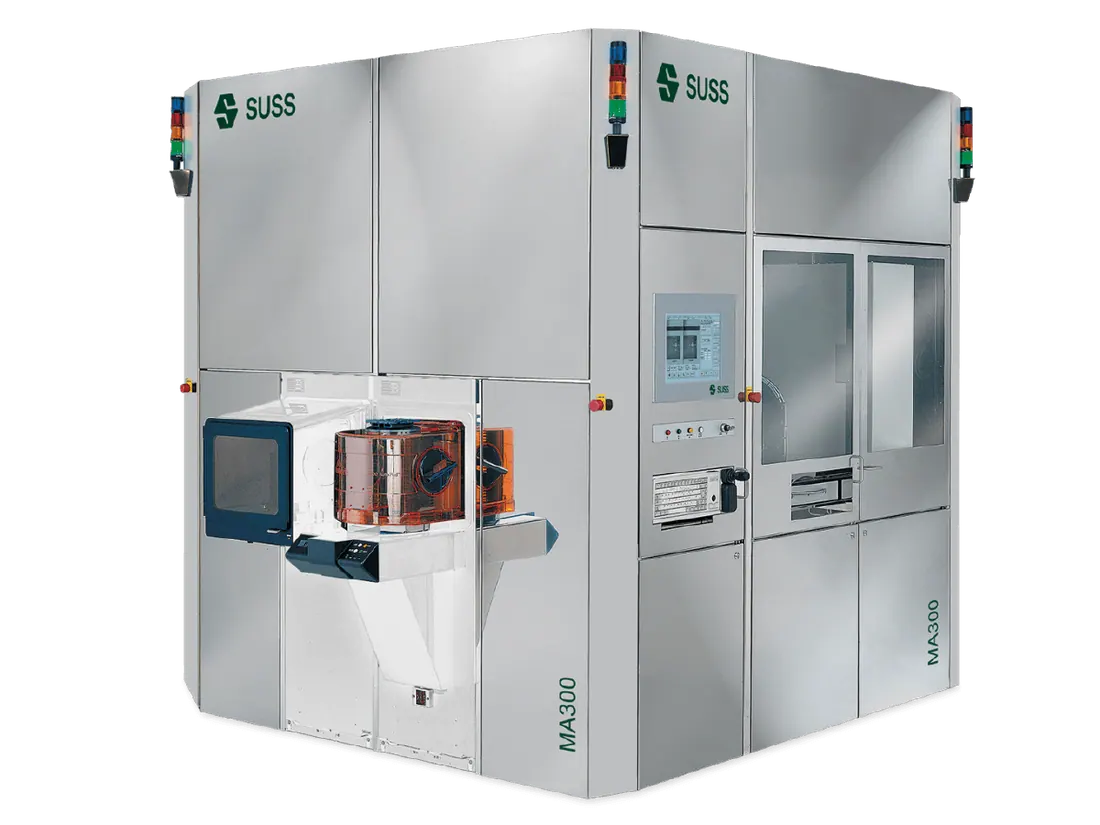

An automated mask aligner for 200 mm and 300 mm wafers in advanced packaging. It patterns through silicon vias, redistribution layers and bumping levels by proximity lithography, and copes with thick resist films that fall outside stepper capability.
| Parameter | Value |
|---|---|
| Wafer sizes | 200 mm and 300 mm |
| Alignment accuracy | 0.5 µm top-side with DirectAlign |
| Alignment options | top-side, bottom-side and infrared |
| Exposure | proximity lithography with MO Exposure Optics |
| Alignment software | DirectAlign with PatMax structure detection |
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about SUSS MicroTec equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
A fully automated mask aligner for high volume production of wafers and square substrates up to 200 mm. It pairs DirectAlign alignment with MO Exposure Optics illumination and ThermAlign thermal compensation for MEMS, radio frequency and power device manufacturing.
A compact manual mask aligner for research and small volume production. It takes pieces from 5 by 5 mm up to 100 mm wafers, prints in soft, hard and vacuum contact, and also supports UV nanoimprint lithography on fragile materials.
A stamp fabrication tool that replicates working stamps for nanoimprint lithography on 300 mm substrates. UV and thermal stamp making sit in one frame, and the high UV irradiance shortens replication from hours to minutes with tight critical dimension control.
