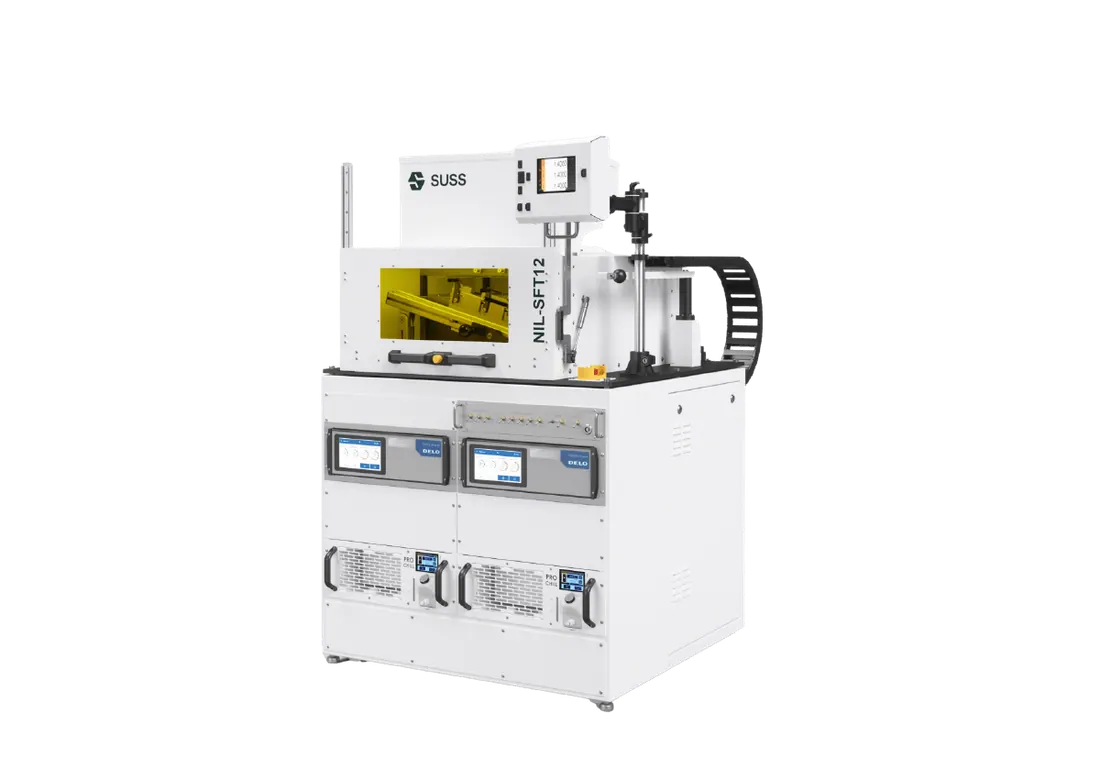

NIL-SFT12 Series Stamp Fabrication Tool
Brand: SUSS MicroTec | Category: Nanotechnology
A stamp fabrication tool that replicates working stamps for nanoimprint lithography on 300 mm substrates. UV and thermal stamp making sit in one frame, and the high UV irradiance shortens replication from hours to minutes with tight critical dimension control.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate size | 300 mm |
| Chuck flatness | down to 2 µm |
| UV intensity | up to 200 mW/cm2 |
| UV uniformity | better than ±5% |
| Modules | UV and thermal stamp fabrication, field upgradeable |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about SUSS MicroTec equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
