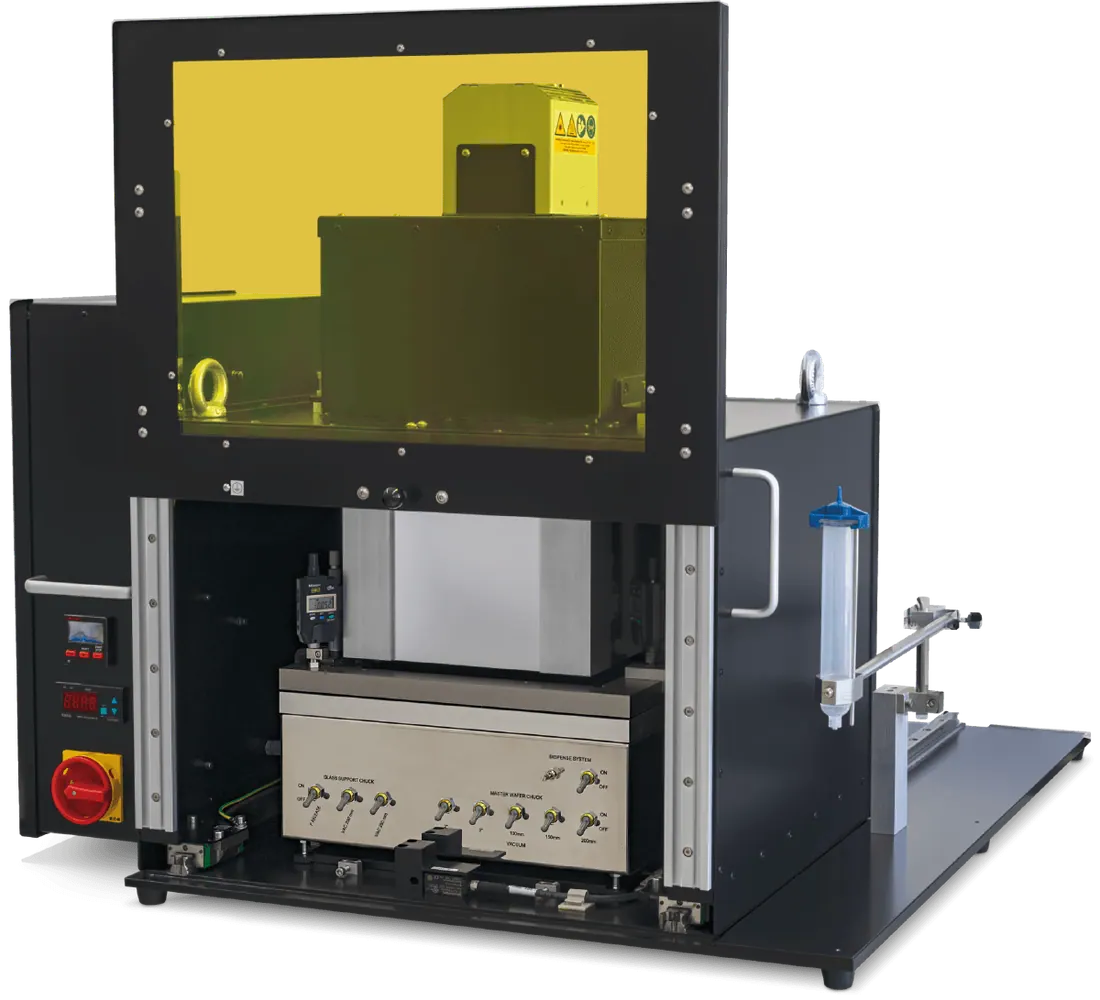

NIL-SFT8 Series Stamp Fabrication Tool
Brand: SUSS MicroTec | Category: Nanotechnology
A table-top tool that makes working stamps for micro and nanoimprint lithography, sized to match the 8 inch MA/BA Gen4 mask aligners. UV-LED curing cuts stamp replication from hours to minutes for LED, MEMS, micro-optics and augmented reality applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Stamp carriers | 200 x 200 mm and 240 x 240 mm |
| Master sizes | 2 inch, 3 inch, 100 mm, 150 mm and 200 mm |
| UV-LED intensity | 100 mW/cm2 |
| Light uniformity | ±2.5% |
| Maximum exposure area | 200 x 200 mm and 200 mm round |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about SUSS MicroTec equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
