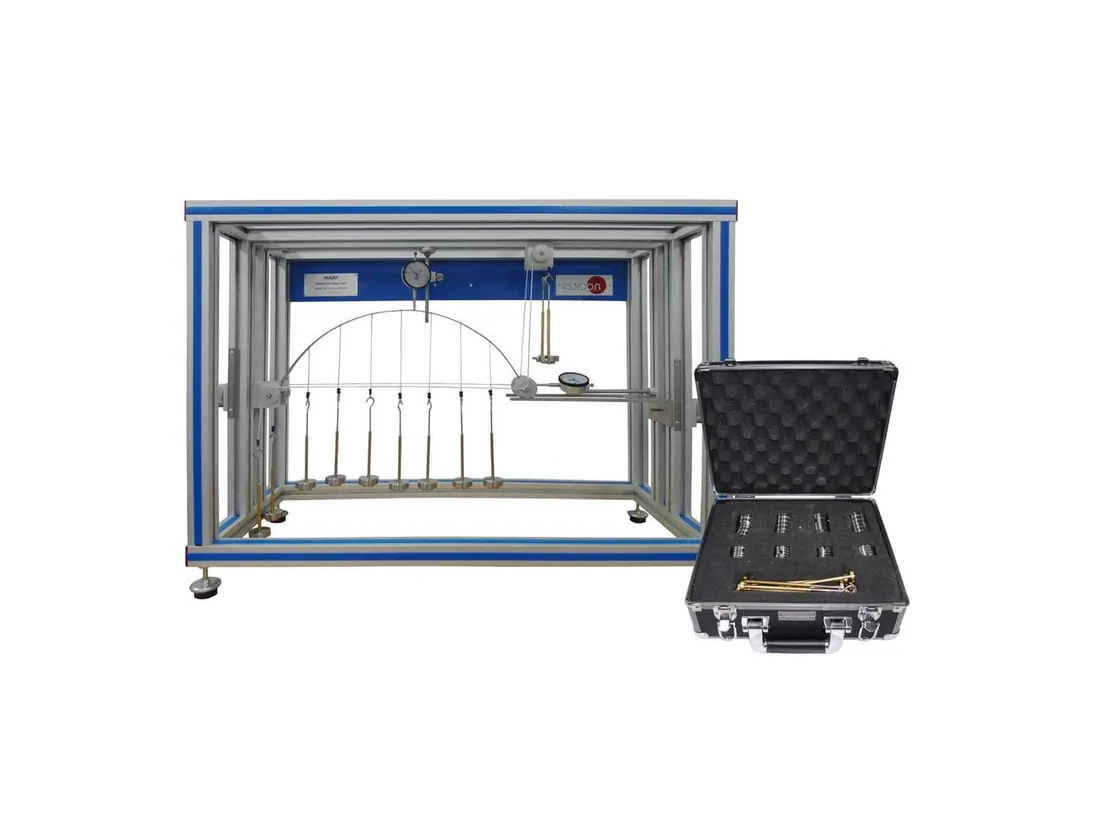

MARP: Parabolic Arch Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MARP is used to study a parabolic arch under load. Horizontal thrust and reactions are measured for point loads at different positions along the span, allowing the influence line for thrust to be plotted and compared with theory.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 850 x 400 x 700 mm approx |
| Weight | 30 Kg approx |
| Length | 500 mm |
| Height | 200 mm |
| Cross section | 20 x 1.5 mm |
| Two dial gauges range | 0 to 25 mm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
