MART: Three-Hinged Arch Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

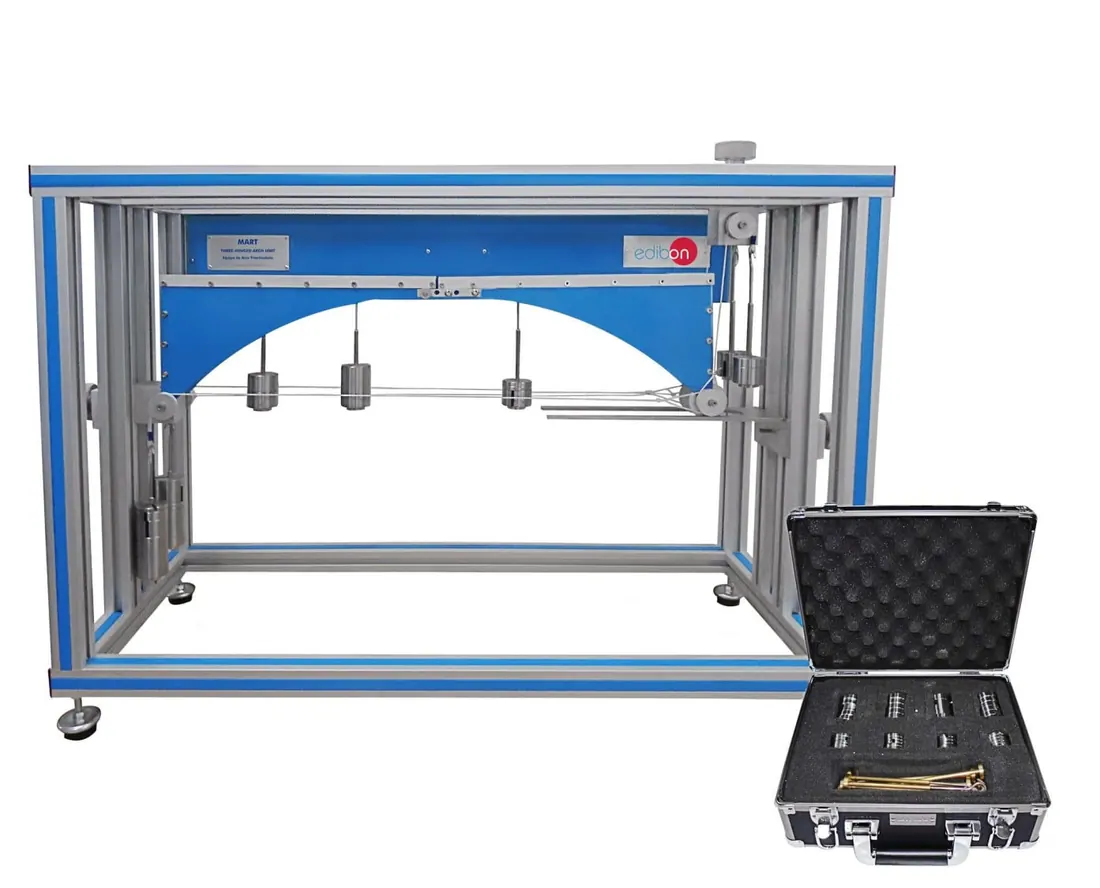

MART is used to study the statically determinate three hinged arch. Reactions and horizontal thrust are measured for loads at different positions along the span, and influence lines are then plotted from the results.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 900 x 400 x 700 mm approx |
| Weight | 40 Kg approx |
| Length of each long segment | 350 mm |
| Total arch length | 700 mm |
| Length of the short segment | 160 mm |
| Total arch length | 510 mm |
