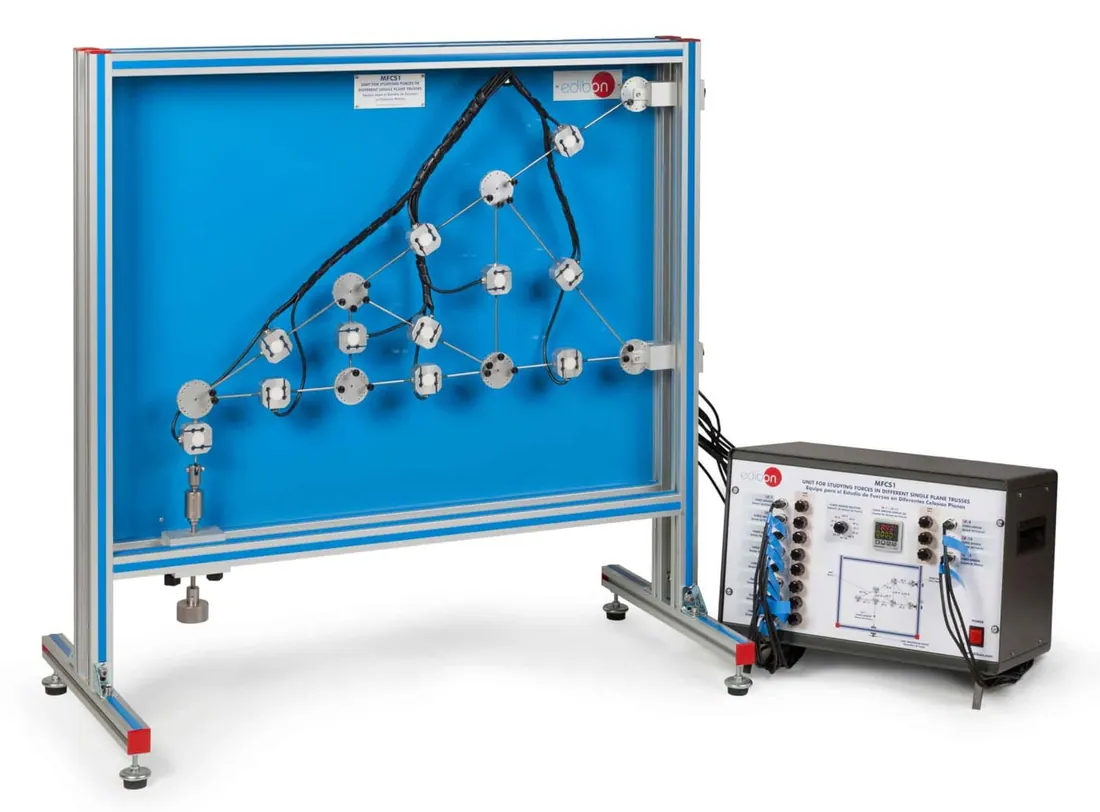

MFCS1: Unit for studying Forces in Different Single Plane Trusses
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MFCS1 allows several plane truss configurations to be built and loaded. Member forces are measured with load cells or spring balances so students can compare experimental values with those from the method of sections and joints.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 500 x 1000 mm approx |
| Weight | 25 Kg approx |
| Specification | Each bar is formed by a force sensor and two bars of 221.3 mm |
| Specification | Each bar is formed by a force sensor and two bars of 173.65 mm |
| Specification | Each bar is formed by a load cell and two bars of 36.5 mm |
| Specification | Each bar includes a force sensor up to 500 N with a graduation of 1 N |
