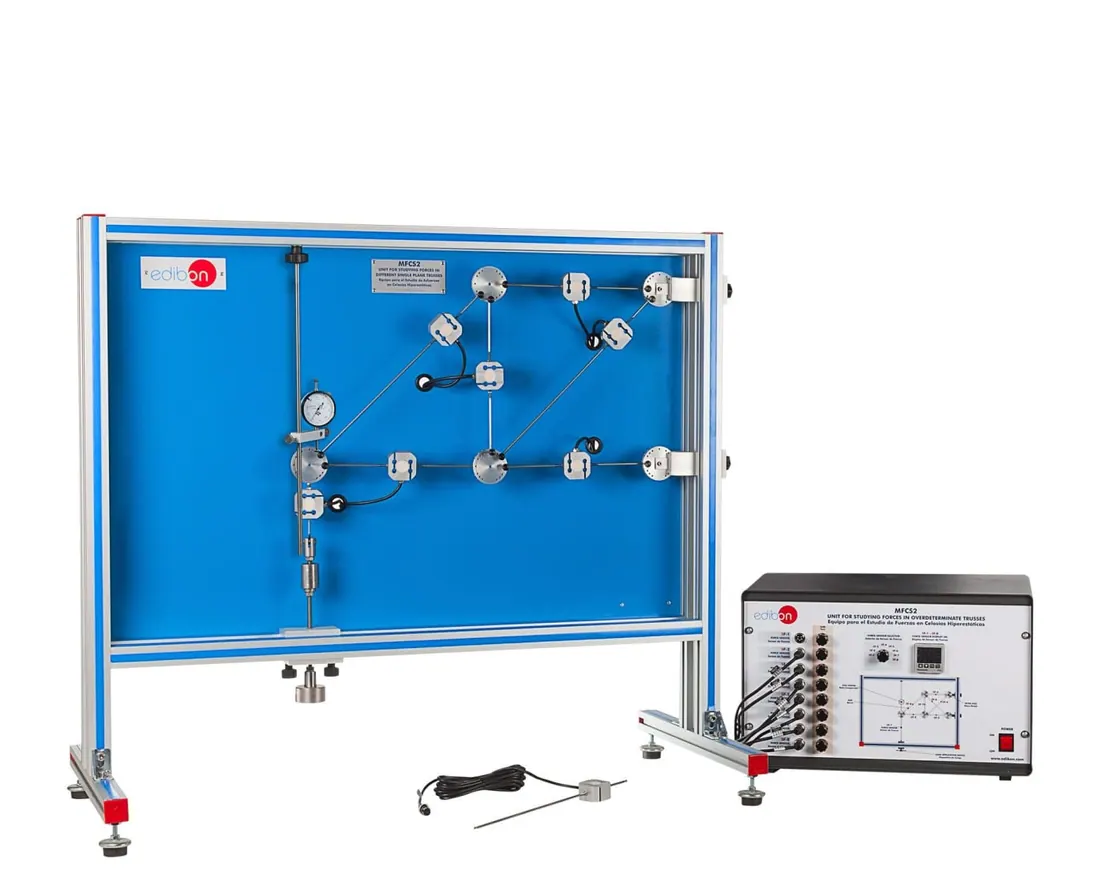

MFCS2: Unit for studying Forces in an Overdeterminate Truss
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MFCS2 is used to study a statically indeterminate truss. Redundant members are added or released while member forces are measured, showing how the load path changes and how indeterminate structures are analysed.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 500 x 1000 mm approx |
| Weight | 25 Kg approx |
| Specification | Each bar is equipped with a force sensor and two bars of 111.5 mm |
| Specification | Each bar includes a force sensor up to 500 N with a graduation of 1N |
| Maximum bar force | 500 N |
| Load application device with a force sensor mountable on different node discs. Range | -500 to 500 N, graduations: 10 N |
