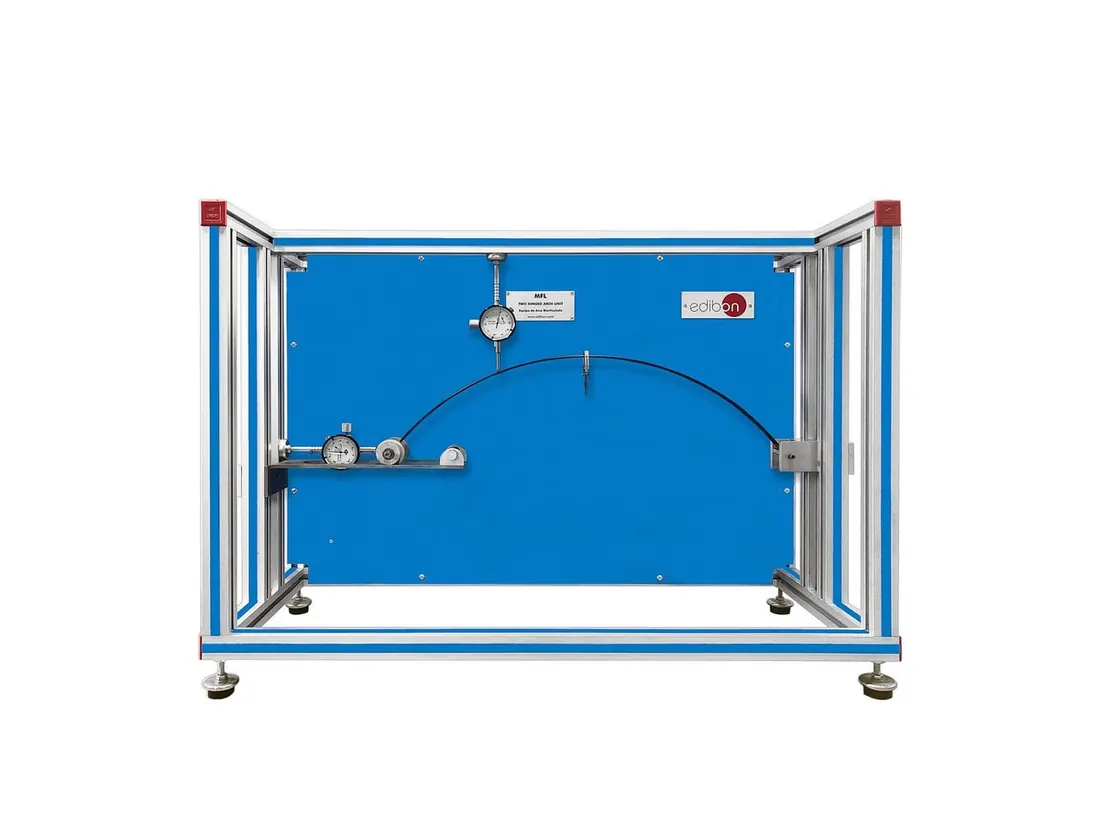

MFL: Two Hinged Arch Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MFL is used to study the statically indeterminate two hinged arch. Horizontal thrust and deflection are measured for loads at different positions, so the influence line for thrust can be plotted and compared with theory.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 700 x 400 x 700 mm approx |
| Weight | 15 Kg approx |
| Steel arch beam, section | 20 x 3 mm |
| Two dial gauges range | 0 to 25 mm |
| Two dial gauges accuracy | 0.01 mm |
