MFCS3: Unit for studying Deformation of Trusses
Brand: EDIBON | Category: Scientific & Laboratory Equipment

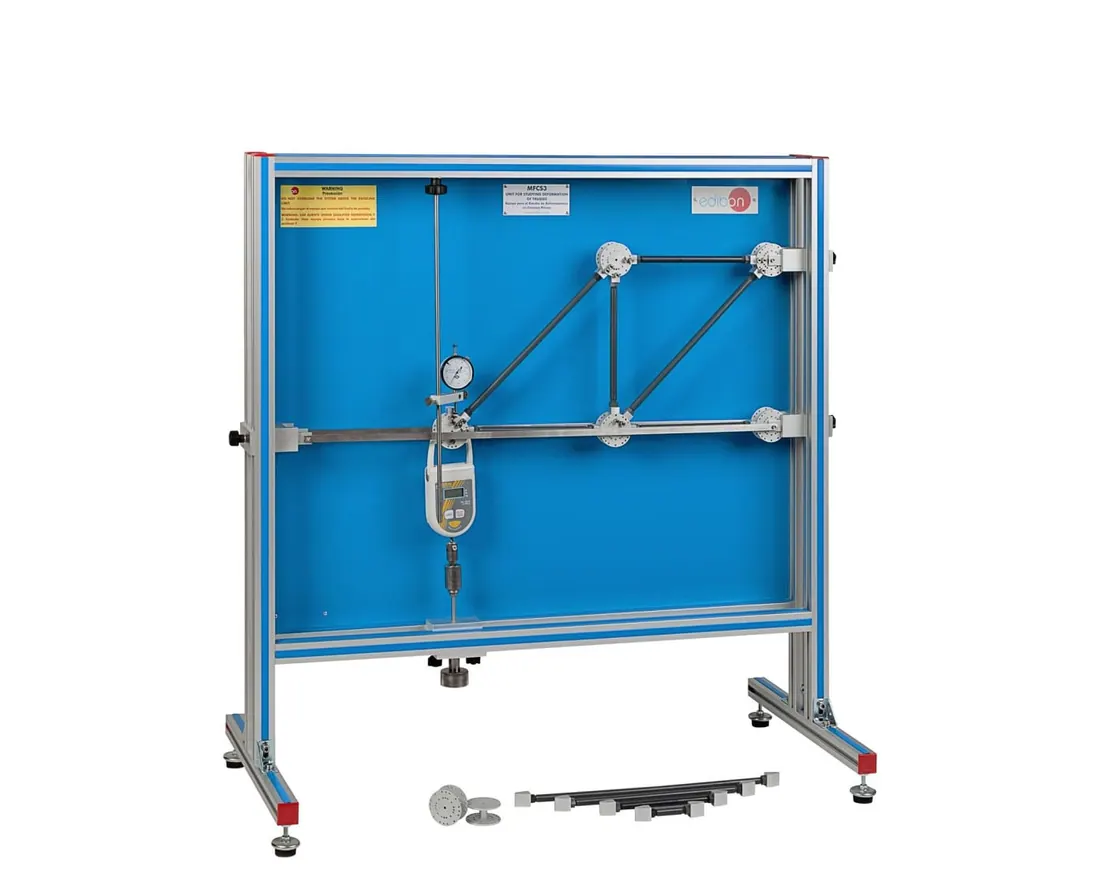

MFCS3 is used to measure joint deflections in a loaded plane truss. Dial gauges record movement at chosen joints so measured deformations can be compared with values obtained from the unit load or virtual work method.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 500 x 1000 mm approx |
| Weight | 25 Kg approx |
| Specification | Bar of 454 mm to achieve a length of 519.9 mm from center to node center |
| Specification | Bar of 384.7 mm to achieve a length of 449.7 mm from center to node center |
| Specification | Two bars of 359 mm to achieve a length of 424.3 mm from center to node center |
| Specification | Two bars of 331 mm to achieve a length of 396.9 mm from center to node center |
