MPO: Portal Frame Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

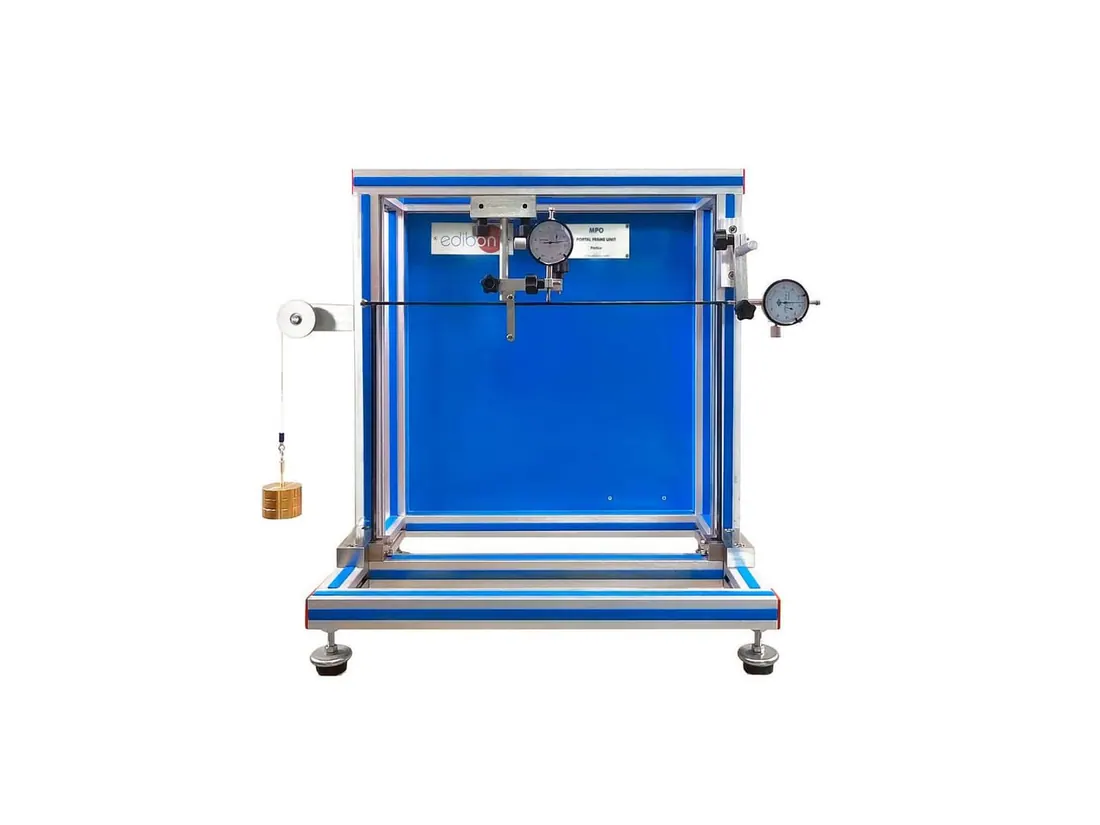

MPO is used to study the behaviour of portal frames under horizontal and vertical loads. Support reactions and sway are measured for pinned and fixed bases, allowing the bending moment distribution to be examined.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 550 x 500 x 550 mm approx |
| Weight | 15 Kg approx |
| Height | 330 mm |
| Length | 480 mm |
| Section | 15 mm x 4 mm |
| Two dial gauges, range | 0 to 10 mm, accuracy: 0.01 mm |
