MVS: Suspension Bridge Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

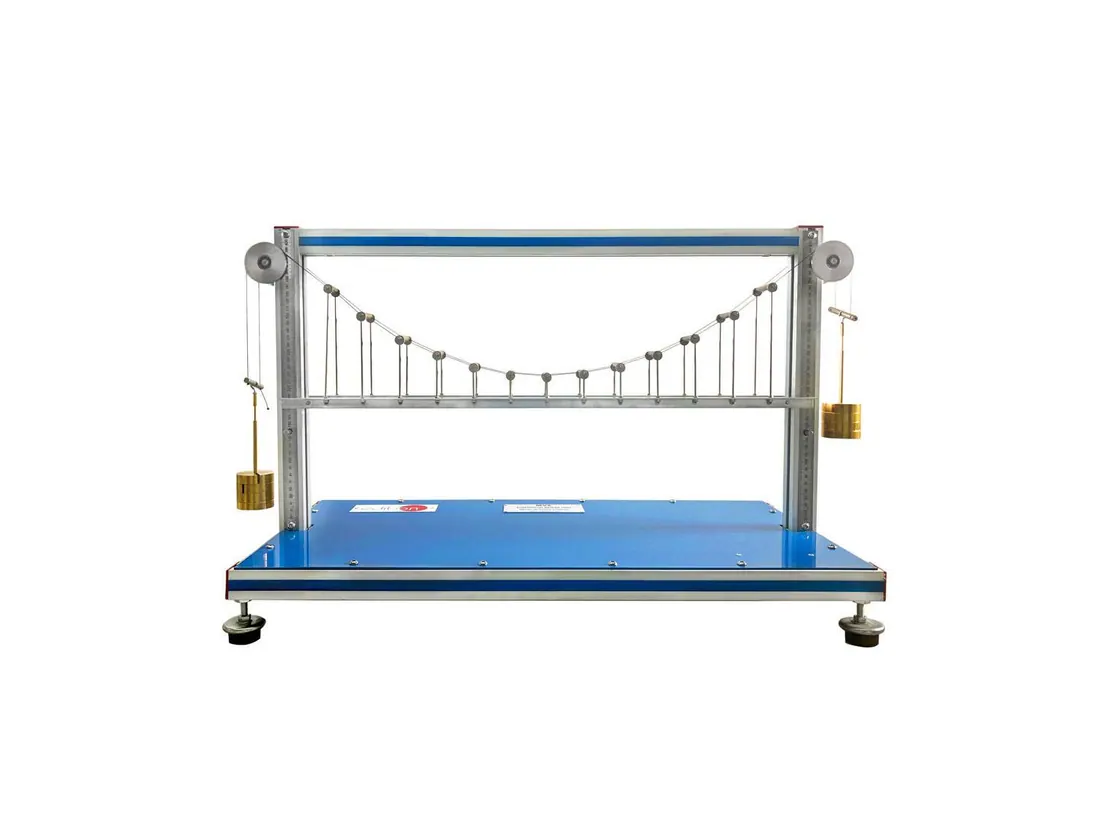

MVS is a model suspension bridge for studying cable structures. Point and distributed loads are applied to the deck while cable tension and sag are measured, showing how the cable profile and support reactions change with loading.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 850 x 350 x 500 mm approx |
| Weight | 25 Kg approx |
| Specification | Thirteen holders to hang the load hooks |
| Specification | Thirteen bars that act as suspenders |
