MFPG: Unit for studying Forces in a Jib Crane
Brand: EDIBON | Category: Scientific & Laboratory Equipment

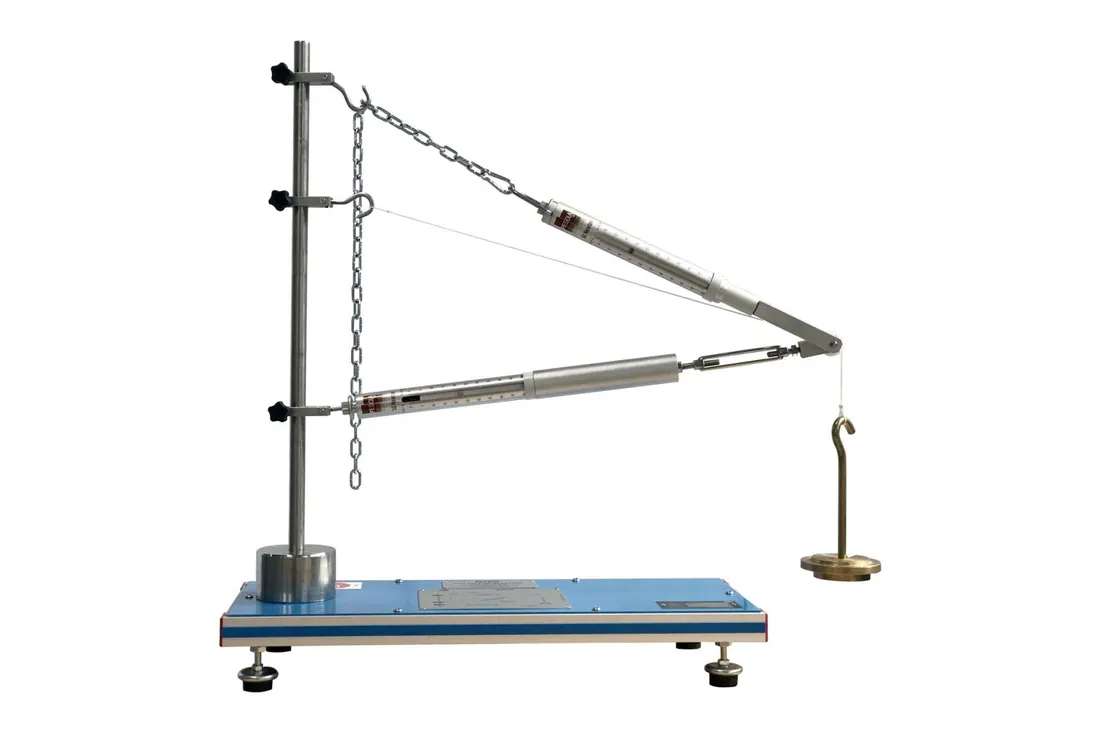

MFPG is used to measure the forces in the members of a simple jib crane. Loads are hung from the jib and the tie and strut forces are read on spring balances, so measured values can be compared with a drawn force diagram.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 700 x 250 x 800 mm approx |
| Weight | 25 kg approx |
| Force | 0 to 50 N, graduations: 0.5 N |
| Chain. It includes a spring balance for tensile forces. Tensile force | 0 to 50 N |
| Graduations | 0.5 N |
| Maximum load on the jib | 60 N |
