MFBS: Unit for Studying Forces in a Simple Bar Structure
Brand: EDIBON | Category: Scientific & Laboratory Equipment

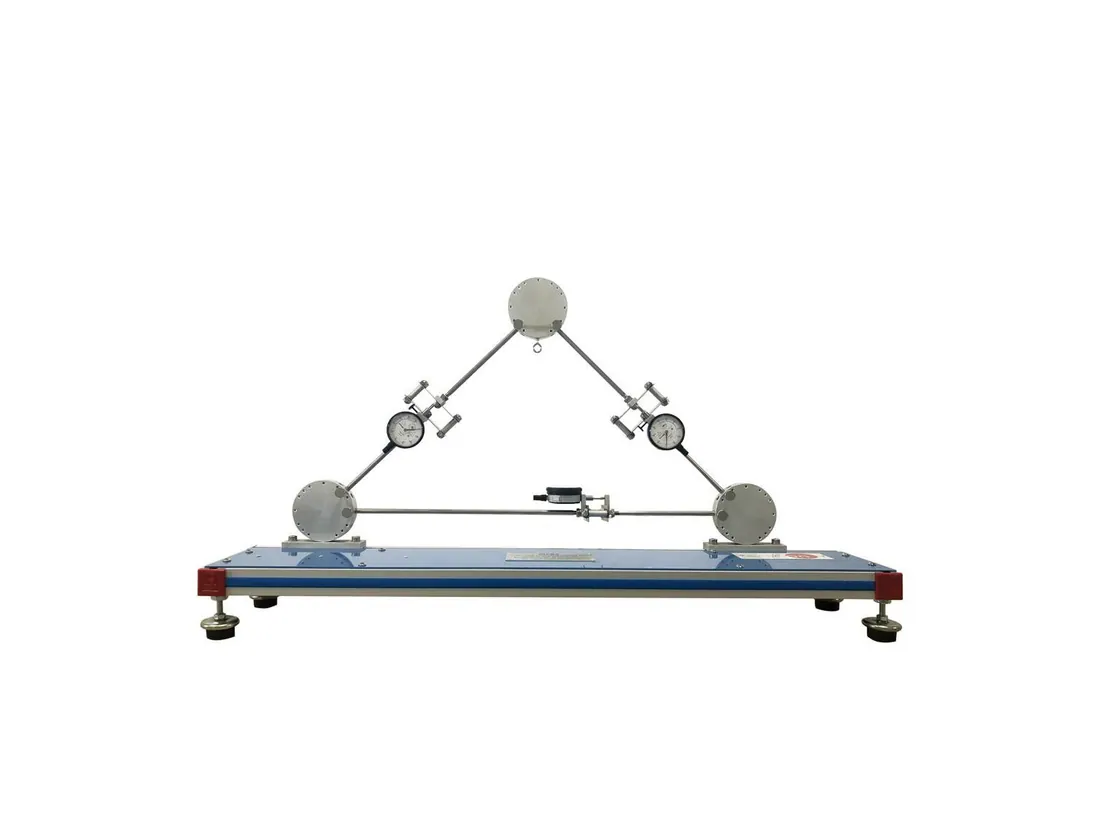

MFBS is used to measure the member forces in a simple pin jointed frame. Loads are applied at the joints and the tension or compression in each bar is read, so results can be checked against the method of joints.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 300 x 500 mm approx |
| Weight | 15 Kg approx |
| Three bars of 385 mm long, diameter | 8 mm |
| Bars made of stainless steel bar of 575 mm long, diameter | 8 mm |
| Bars made of stainless steel bar of 720 mm long, diameter | 8 mm |
| Set of flat bars made of aluminum, dimensions | 90 x 25 x 1 mm |
