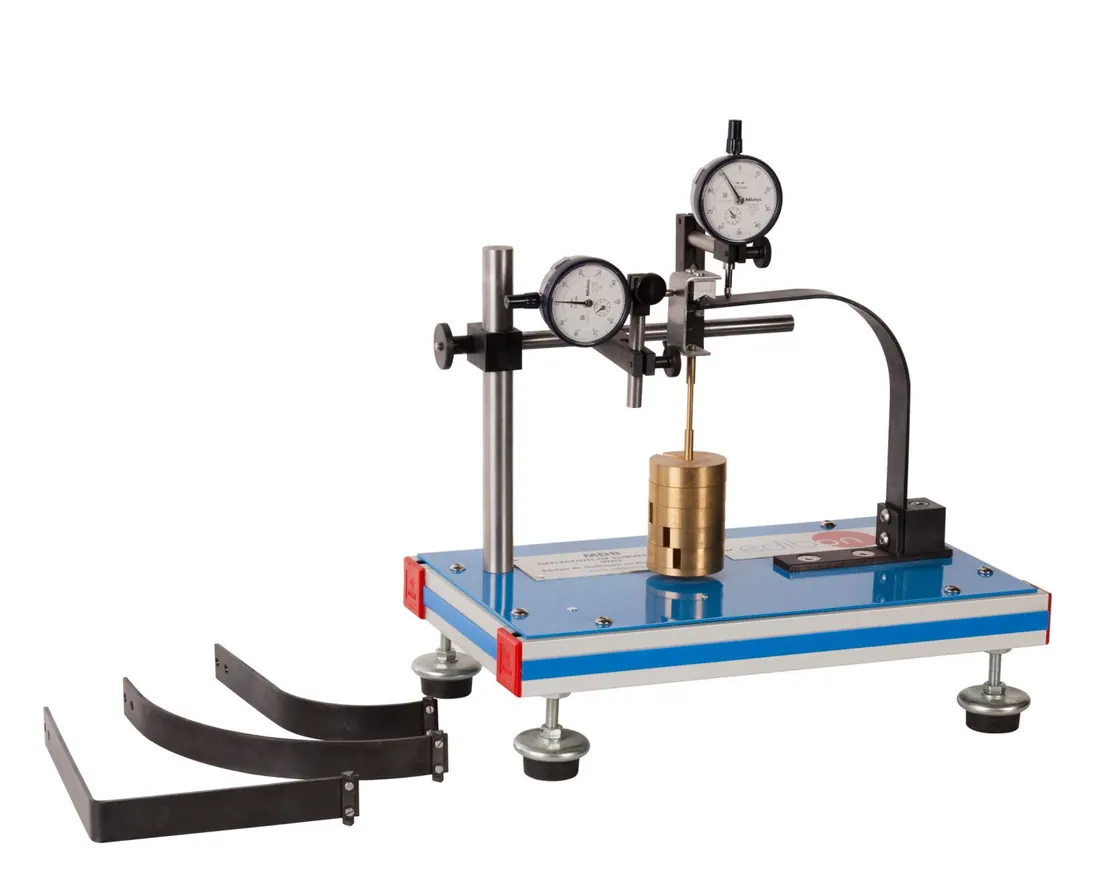

MDB: Deflection of Curved Bars Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MDB is used to measure the deflection of curved members such as circular rings, semicircular arches and quadrant bars. Loads are applied and dial gauges record the movement, allowing results to be compared with strain energy methods.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 370 x 220 x 400 mm approx |
| Weight | 8 Kg approx |
| Specification | Two dial gauges with range from 0 to 10 mm, and with 0.01 mm accuracy, to measure the deformation |
