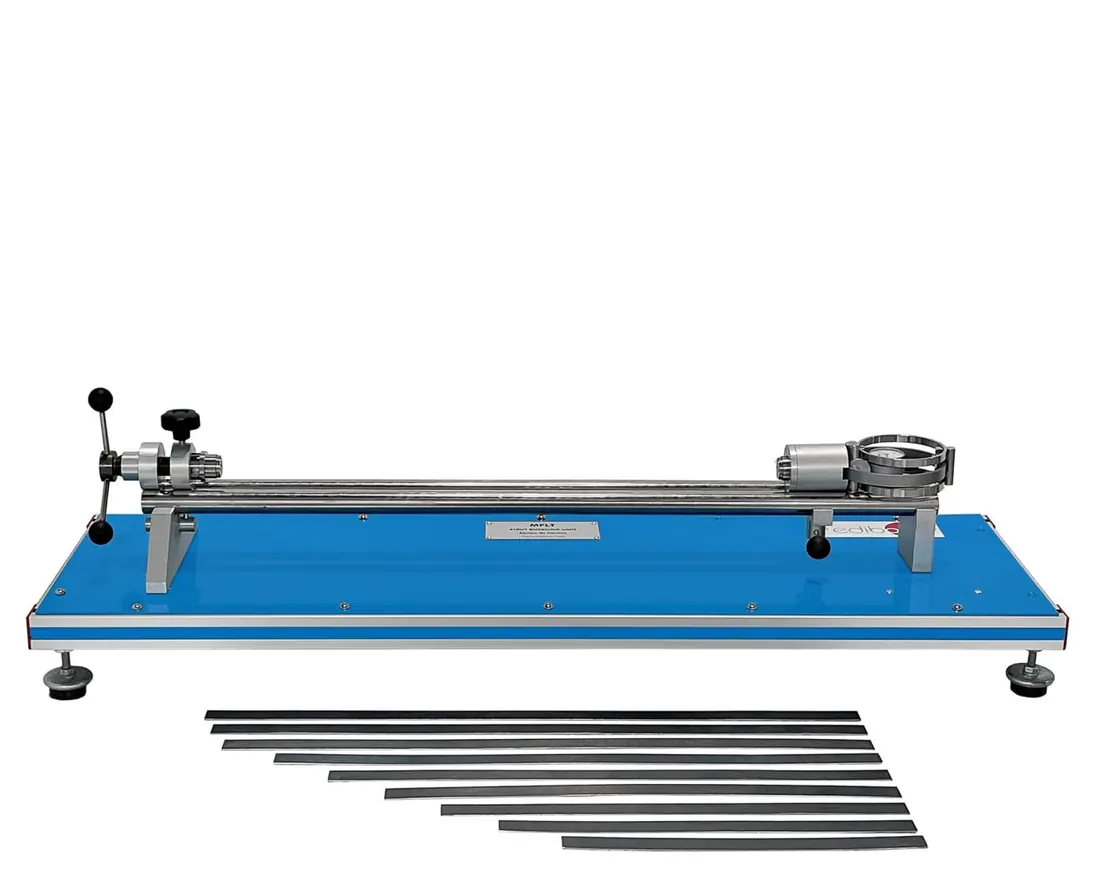

MFLT: Strut Buckling Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MFLT is used to find the buckling load of slender struts. Specimens of different length and end fixing are loaded in compression until they buckle, so the measured critical load can be compared with the Euler prediction.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 300 x 250 mm approx |
| Weight | 15 Kg approx |
| Dial gauge, range | 0 to 5 mm; accuracy: 0.01 mm; to determine the compression load to which the test piece is subjected |
| Specification | Nine test pieces of different length are included. They are made of tempered steel and their dimensions are 20 mm wide and 1.5 mm thick |
| Specification | Test piece 300 mm long |
| Specification | Test piece 350 mm long |
