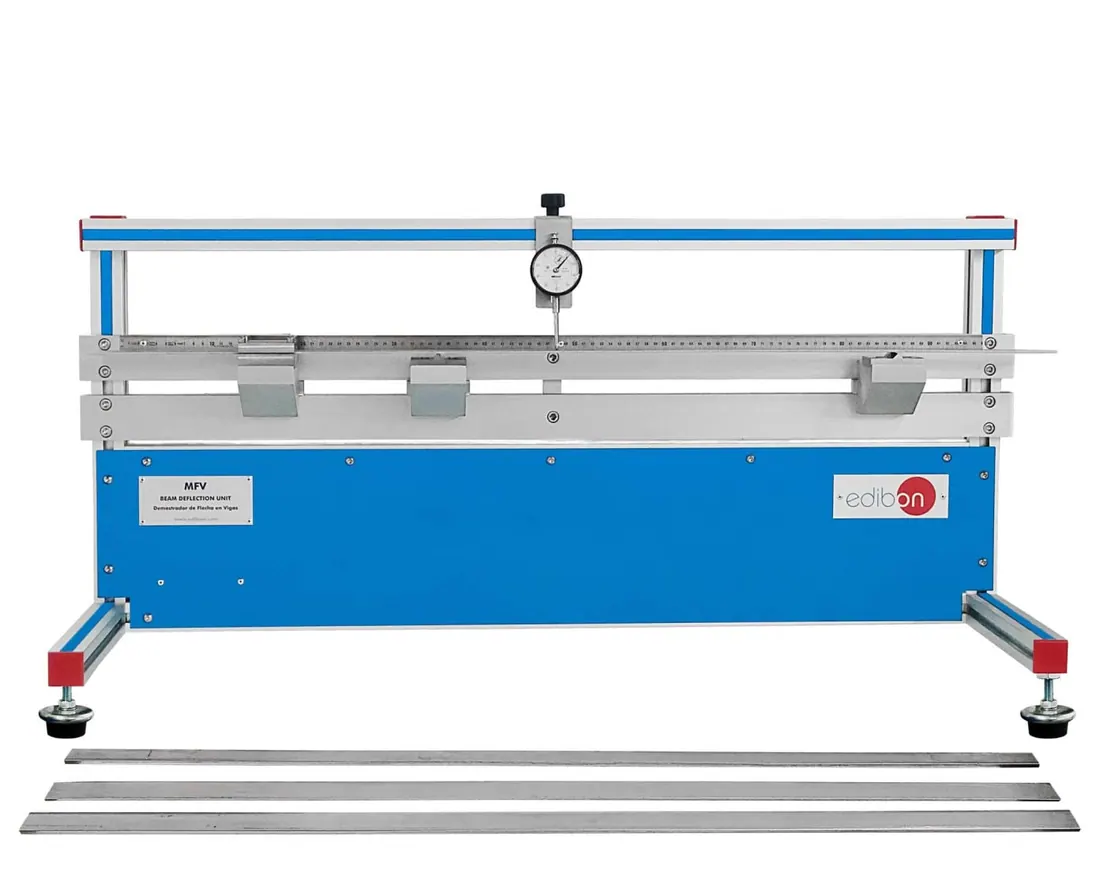

MFV: Beam Deflection Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MFV is used to measure the deflection of beams under point and distributed loads. Supports can be moved to give simply supported, cantilever and fixed arrangements, and dial gauges record deflection for comparison with calculated values.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1200 x 400 x 400 mm approx |
| Weight | 20 Kg approx |
| Dial gauge range | 0 to 25 mm |
| Dial gauge accuracy | 0.01 mm |
| Specification | It allows experimentation with beams up to 1000 mm length for their study |
| Specification | Three test rectangular beams (made of stainless steel) with different cross sections and 1 m of length are supplied |
