MDLE: Unit for studying Methods to Determine the Elastic Line
Brand: EDIBON | Category: Scientific & Laboratory Equipment

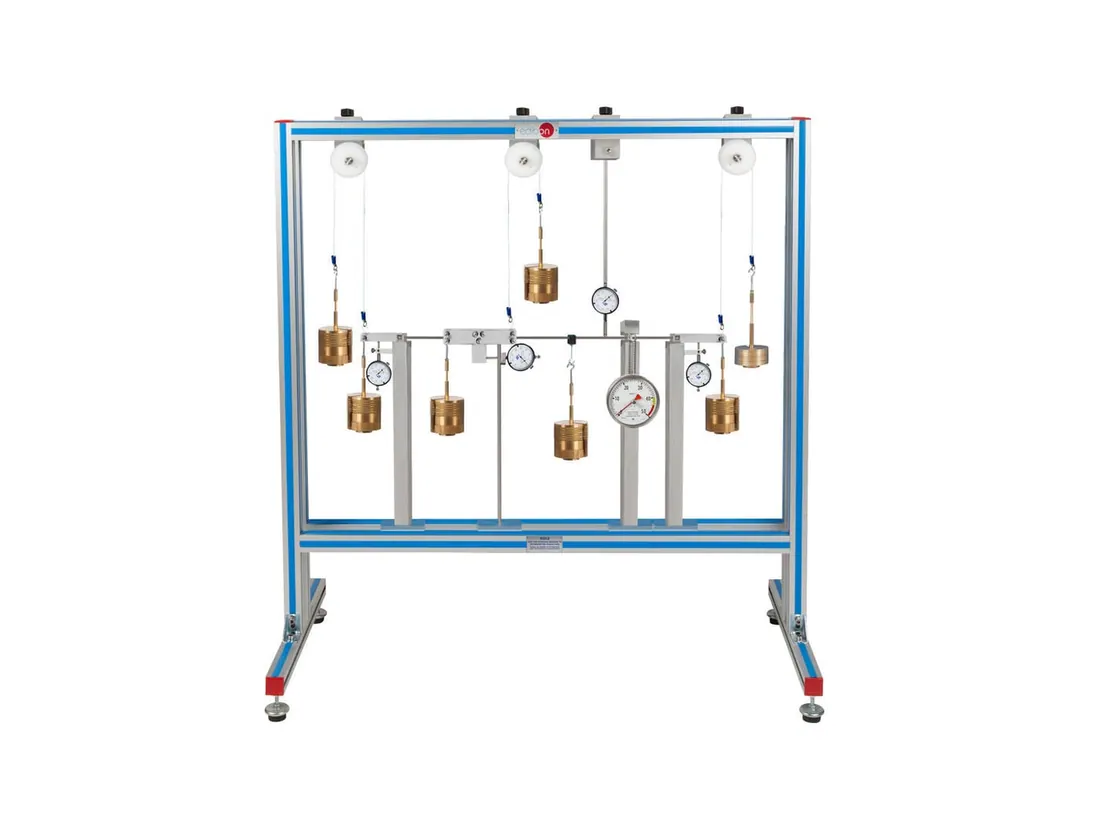

MDLE is used to determine the deflected shape of loaded beams. Dial gauges along the span record deflection under point and distributed loads, so the elastic line can be plotted and compared with results from analytical methods.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1400 x 450 x 1150 mm approx |
| Weight | 20 Kg approx |
| Three beams length | 1000 mm |
| Three beams cross-section | 25 x 4 mm |
| Measuring ranges force gauge, range | -50 to 50 N, graduations: 1N |
| Measuring ranges dial gauge, range | 0 to 20 mm, graduations: 0.01 mm |
