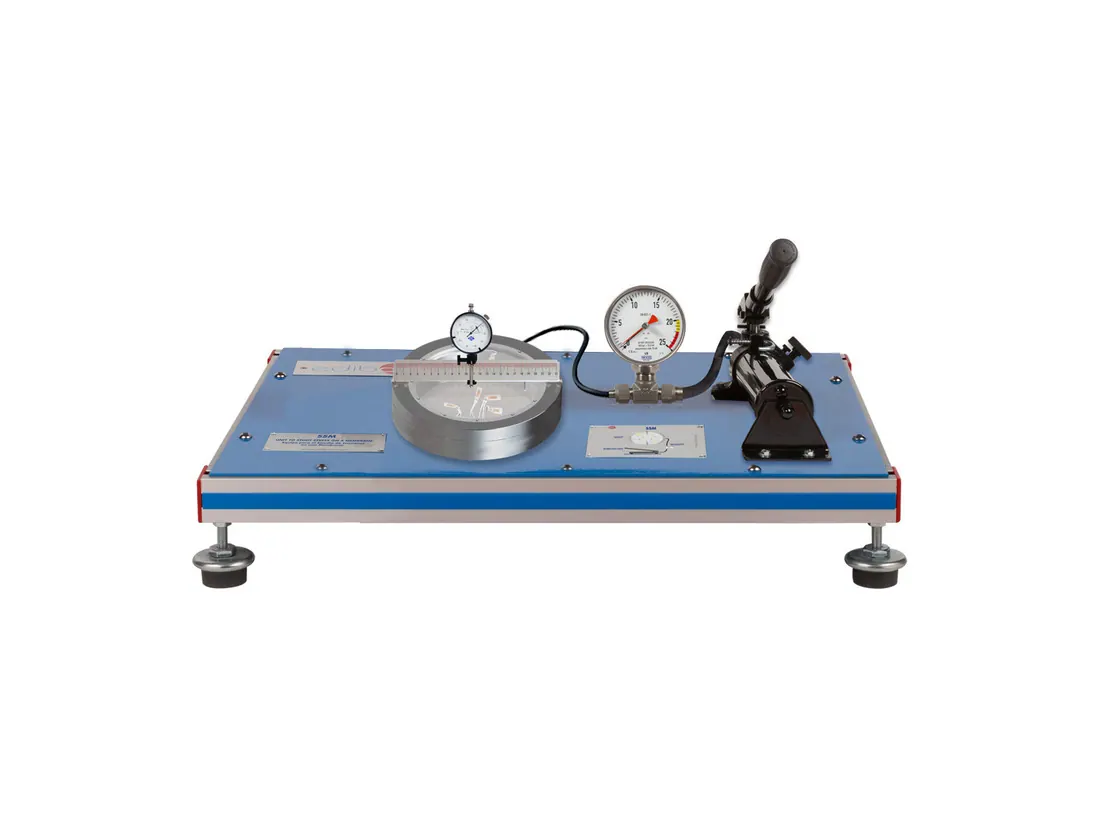

SSM: Unit to Study Stress on a Membrane
Brand: EDIBON | Category: Scientific & Laboratory Equipment
SSM is used to measure the stresses in a thin membrane under pressure. Strain gauges on the membrane are read as pressure is raised, so radial and tangential stresses can be found and compared with plate and shell theory.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 660 x 400 x 300 mm approx |
| Weight | 20 Kg approx |
| Specification | Inner diameter = 70 mm |
| Specification | Outside diameter = 230 mm |
| Specification | Wall thickness = 3 mm |
| Hydraulic pump. Maximum system pressure | 0.7 bar |
