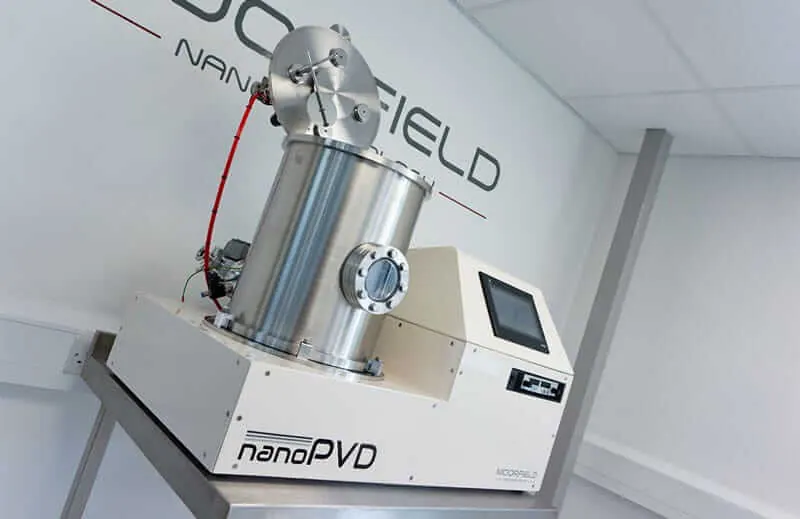

nanoPVD-ST15A Hybrid PVD System
Brand: Moorfield Nanotechnology | Category: Nanotechnology
A hybrid benchtop system that combines magnetron sputtering with thermal and low temperature evaporation in a single chamber. It suits multilayer thin films, hybrid device stacks, contacts and seed layers where the process route is not yet fixed.
Technical Specifications
| Parameter | Value |
|---|---|
| Base pressure | 5x10-7 mbar |
| Sputter sources | configurable water cooled magnetrons |
| Evaporation sources | TE1 plus LTE sources |
| Specification | Sputtering and evaporation in a single chamber |
| Maximum substrate size | 4 inch (100 mm) |
| Substrate heating | up to 500 deg C optional |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Moorfield Nanotechnology equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
