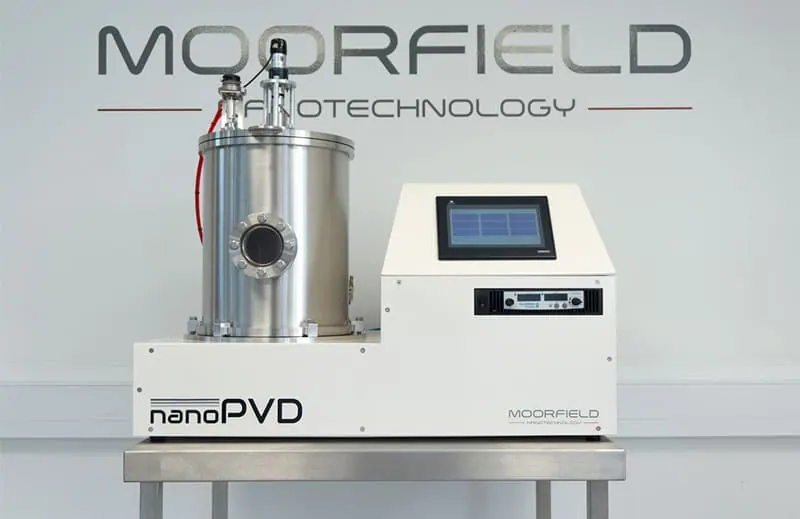

nanoPVD-T15A Thermal Evaporation System
Brand: Moorfield Nanotechnology | Category: Nanotechnology
A benchtop thermal and low temperature evaporation system for metals, organics and sensitive materials. It gives research groups local evaporation capability for electrodes, contact layers, organic electronics and optical films.
Technical Specifications
| Parameter | Value |
|---|---|
| Base pressure | 5x10-7 mbar |
| Evaporation sources | up to 4 LTE low temperature evaporation sources |
| Thermal evaporation | TE1 plus LTE sources |
| Maximum substrate size | 4 inch (100 mm) |
| Substrate heating | up to 500 deg C optional |
| Warranty | 2 years |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Moorfield Nanotechnology equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
